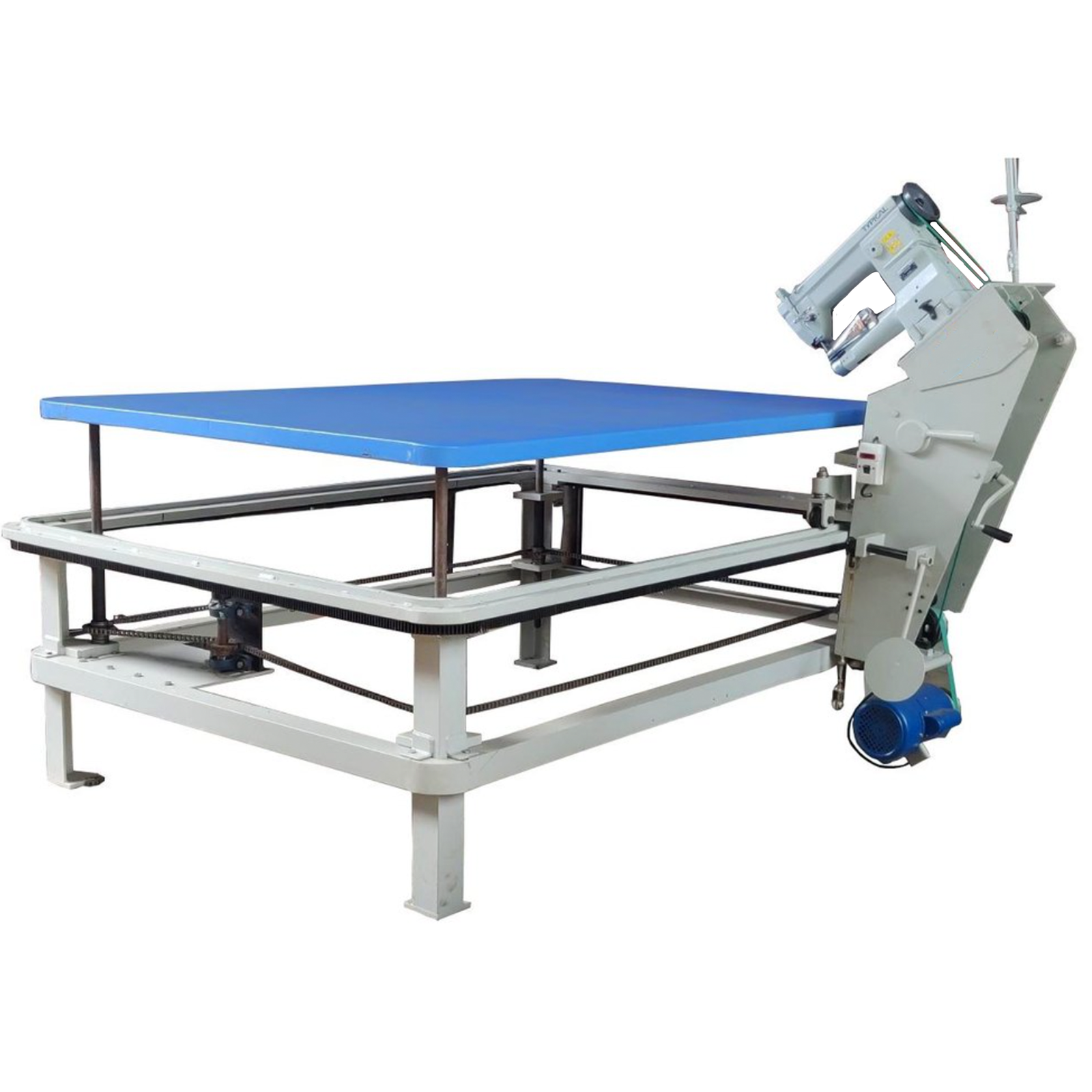

Typical WB-1 Series Mattress Tape Edge Workstation

Description

Typical WB-1 Series Mattress Tape Edge Workstation

Manual mattress tape-edge sewing workstation designed for attaching edge tape around mattresses and completing clean, durable mattress border seams.

The Typical WB-1 Series Mattress Tape Edge Workstation is a complete industrial mattress finishing system equipped with a Typical lockstitch sewing head. It is designed for sewing binding tape around the top and bottom edges of mattresses, providing a neat and secure finished border.

The workstation features a large adjustable worktable that supports the mattress during sewing. The sewing head is mounted on a movable carriage, allowing the operator to guide the machine around the mattress perimeter. Manual controls provide adjustment of the table height, sewing-head angle and carriage movement.

With a maximum sewing-head tilting angle of approximately 40° and a table lifting range of 260mm, the WB-1 is suitable for mattresses of different thicknesses. Its simple mechanical design makes it an economical and reliable solution for mattress manufacturers requiring consistent tape-edge finishing. Typical WB-1 configurations are commonly rated for approximately 15 mattresses per hour, depending on mattress size and operator skill.

Key Features

• Complete mattress tape-edge sewing workstation
• Equipped with Typical lockstitch sewing head
• Designed for mattress border and edge tape sewing
• Movable sewing carriage for operation around mattress edges
• Large worktable for supporting mattresses during sewing
• Adjustable worktable height
• Table lifting range up to 260mm
• Sewing-head tilting angle up to 40°
• Manual control of carriage movement and sewing operation
• Corner slowdown control for improved stitching accuracy
• Produces clean and consistent mattress edge seams
• Suitable for different mattress thicknesses
• Low vibration and stable machine operation
• Economical and easy-to-maintain workstation design
• Suitable for small- to medium-scale mattress production

Specifications

• Brand: Typical
• Class: WB-1 Series
• Model: Typical WB-1 Mattress Tape Edge Workstation
• Machine Type: Manual Mattress Tape Edge Sewing Workstation
• Sewing Head Type: Typical Lockstitch Head
• Stitch Type: Lockstitch
• Primary Application: Mattress Tape Edge Sewing
• Mattress Thickness Range: Approximately 40–300mm
• Alternative Configuration Range: Up to 20–350mm on selected versions
• Table Lifting Range: 260mm
• Maximum Sewing Head Tilting Angle: 40°
• Worktable Size: Approximately 1,500 × 2,000mm
• Productivity: Up to approximately 15 mattresses/hour
• Carriage Control: Manual
• Table Lifting: Manual or configuration-dependent
• Total Power: Approximately 400W
• Power Supply: Single Phase, 220V / 50–60Hz
• Machine Weight: Approximately 400–465kg
• Machine Dimensions: Approximately 2,130 × 2,010 × 1,565mm

Specifications can vary depending on the manufacturer, workstation configuration and sewing head supplied with the WB-1 system.

Suitable For:
Spring Mattresses • Foam Mattresses • Pillow-Top Mattresses • Euro-Top Mattresses • Orthopedic Mattresses • Mattress Border Sewing • Mattress Tape Edging • Bedding Manufacturing • Upholstered Mattress Edges • Mattress Production Facilities
