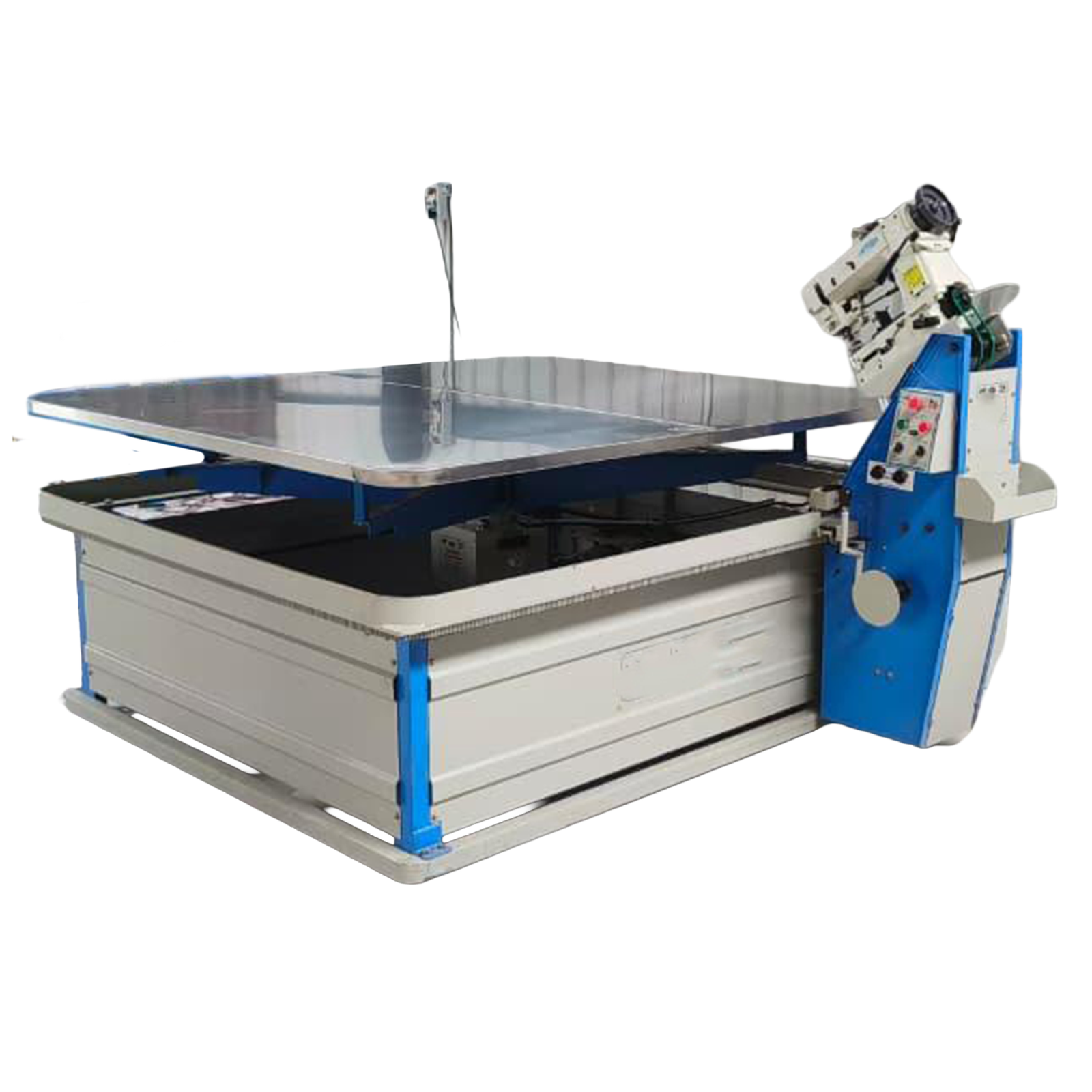

LC-3 (WB-3) Semi-Automatic Mattress Tape Edge Sewing Machine

Description

LC-3 (WB-3) Semi-Automatic Mattress Tape Edge Sewing Machine

Semi-automatic mattress tape-edge sewing workstation designed for attaching binding tape around mattress borders and producing clean, durable finished edges.

The LC-3 (WB-3) is a specialized mattress tape-edge machine used for sewing the top and bottom panels of a mattress to the side border while simultaneously attaching edge tape. The machine is widely used in mattress manufacturing for foam, spring, pillow-top and upholstered mattresses.

The workstation features a movable sewing head carriage that travels around the mattress perimeter. Variable-speed control allows the operator to adjust both sewing and carriage movement, while the automatic corner slowdown function improves stitching accuracy when sewing around mattress corners.

Depending on the configuration, the machine can be equipped with either a lockstitch or chainstitch sewing head. The adjustable sewing-head angle and lifting worktable allow the machine to accommodate mattresses of different thicknesses. WB-3-type machines commonly offer mattress capacities ranging approximately from 30mm to 450mm, depending on the configuration.

Key Features

• Semi-automatic mattress tape-edge sewing machine
• Designed for sewing mattress borders and attaching edge tape
• Suitable for foam, spring and upholstered mattresses
• Movable sewing-head carriage for sewing around the mattress perimeter
• Automatic corner slowdown for improved stitching accuracy
• Variable-speed control for sewing and carriage movement
• Adjustable sewing-head angle
• Adjustable or electric lifting worktable
• Suitable for different mattress thicknesses
• Available with lockstitch or chainstitch sewing head configurations
• Produces straight, even and attractive mattress edge seams
• Stable operation with low vibration and noise
• Heavy-duty industrial workstation construction
• Suitable for continuous mattress production

Specifications

• Brand: LC / Typical-Style Configuration
• Class: LC-3 / WB-3
• Model: LC-3 (WB-3)
• Machine Type: Semi-Automatic Mattress Tape Edge Sewing Machine
• Primary Application: Mattress Border and Tape-Edge Sewing
• Sewing Head Type: Lockstitch or Chainstitch, Depending on Configuration
• Mattress Thickness Range: Approximately 30–450mm
• Alternative Thickness Ranges: 50–300mm / 150–400mm / 250–500mm, Depending on Configuration
• Sewing Head Working Angle: Approximately 35°–55°
• Table Lifting Range: Approximately 140–260mm
• Table Lifting: Electric or Configuration-Dependent
• Carriage Speed: Approximately 5.5–16m/min
• Sewing Head Speed: Approximately 1,100–3,000 stitches/min
• Automatic Corner Slowdown: Yes
• Worktable Size: Approximately 1,400 × 1,950mm
• Alternative Table Sizes: Available Depending on Configuration
• Total Power: Approximately 1.15–1.2kW
• Power Supply: Single-Phase or Three-Phase, Depending on Configuration
• Productivity: Approximately 10–20 Mattresses/Hour
• Machine Weight: Approximately 550–600kg

Specifications may vary depending on the manufacturer, sewing head, table size and regional configuration supplied with the LC-3/WB-3 system.

Suitable For:
Foam Mattresses • Spring Mattresses • Pocket Spring Mattresses • Pillow-Top Mattresses • Euro-Top Mattresses • Rebonded Foam Mattresses • Memory Foam Mattresses • Orthopedic Mattresses • Mattress Border Sewing • Mattress Tape Edging • Bedding Manufacturing • Upholstered Mattress Finishing
