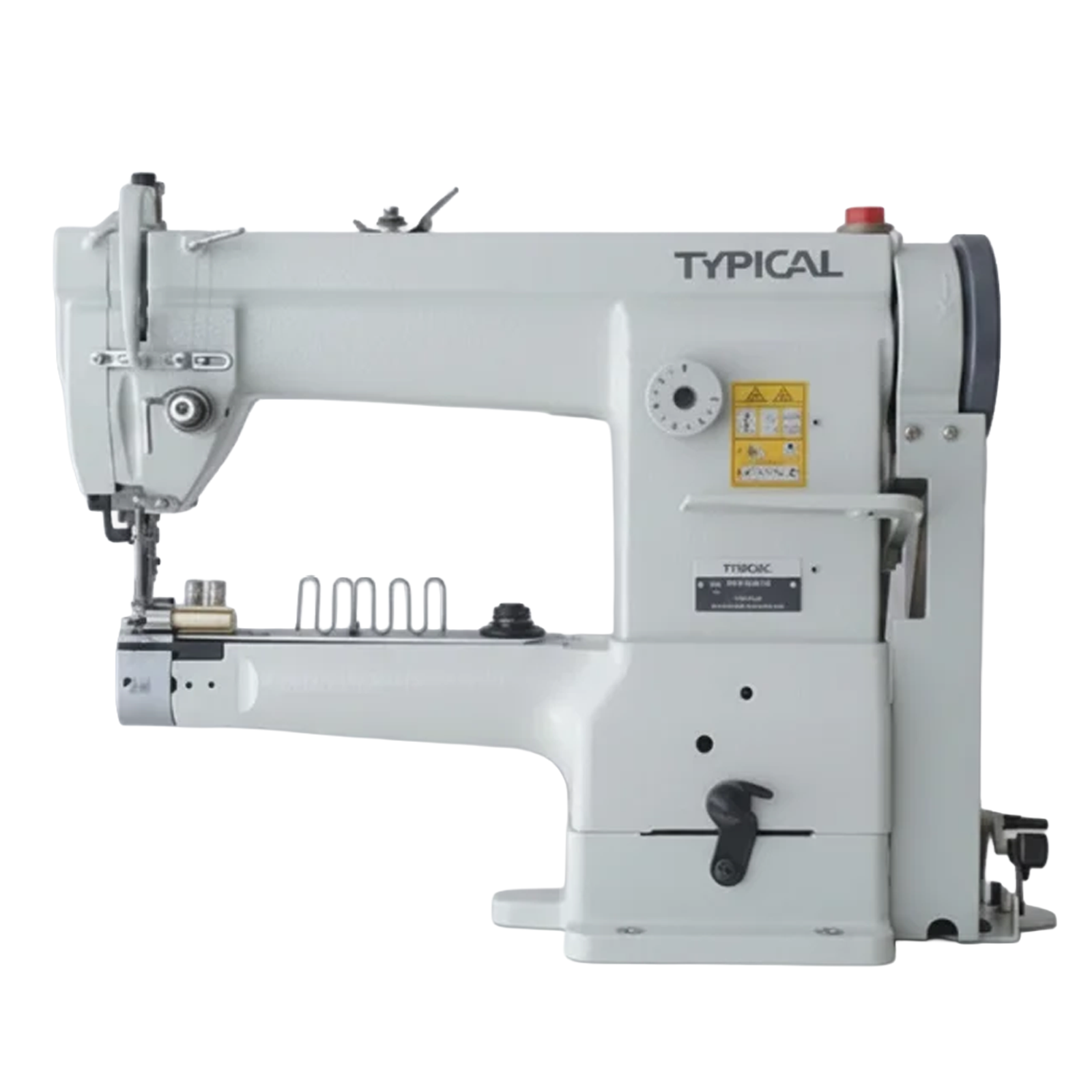

Typical GC2605 Cylinder Arm Compound Feed Binding Sewing Machine

Description

Typical GC2605 Cylinder Arm Compound Feed Binding Sewing Machine

Heavy-duty single-needle cylinder arm lockstitch machine designed for sewing medium- to heavy-weight materials, particularly applications requiring simultaneous binding and sewing operations.

The Typical GC2605 features a powerful compound feed system that combines bottom feed, needle feed and alternating top feed to provide smooth and consistent material movement. This triple-feed mechanism helps prevent shifting between multiple layers and ensures reliable feeding of thick, difficult and uneven materials.

Its narrow cylinder-arm construction provides easy access to curved, tubular and difficult-to-reach areas. The GC2605 is also equipped with a synchronized binding device, making it particularly suitable for attaching binding tape or edging while sewing.

The large-capacity rotary hook reduces the frequency of bobbin changes, while the heavy-duty construction makes the machine suitable for leather goods, bags, footwear, upholstery and technical sewing applications.

Key Features

• Single-needle cylinder arm lockstitch machine
• Compound feed / triple-feed material transport system
• Integrated synchronized binding device
• Designed for simultaneous sewing and binding operations
• Large-capacity rotary hook with increased bobbin capacity
• Cylinder arm for sewing tubular and three-dimensional components
• Excellent feeding performance on thick and multiple material layers
• Maximum stitch length up to 6mm
• Maximum sewing speed up to 2,000 stitches/min
• Heavy-duty construction for industrial applications
• Suitable for leather, upholstery and technical materials
• Forward and reverse sewing capability
• Precise gear-driven sewing mechanism
• Low vibration and relatively quiet operation
• Manual lubrication system

Specifications

• Brand: Typical
• Class: GC2605
• Model: GC2605
• Machine Type: Cylinder Arm Compound Feed Binding Sewing Machine
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Number of Threads: 2
• Feed System: Bottom Feed + Needle Feed + Alternating Top Feed
• Maximum Stitch Length: 6mm
• Maximum Sewing Speed: 2,000 stitches/min
• Maximum Sewing Thickness: Up to 8mm
• Presser Foot Lift: 6.5mm by Hand / 13mm by Knee Lift
• Needle Bar Stroke: Approximately 37mm
• Needle System: DP × 17
• Needle Size: Nm 110–180 / #18–24
• Hook: Large-Capacity Rotary Hook
• Hook Type: Horizontal Axis
• Cylinder Arm Diameter: Approximately 50mm
• Clearance Under Arm: Approximately 260 × 120mm
• Binding Device: Synchronized Binding Attachment
• Lubrication: Manual
• Recommended Motor: Approximately 370W Servo or Clutch Motor

Specifications may vary slightly depending on the regional machine configuration and supplied accessories.

Suitable For:
Leather Goods • Handbags • Luggage • Suitcases • Footwear • Upholstery • Seat Covers • Cushions • Canvas Products • Technical Textiles • Binding Operations • Edge Binding • Piping • Hats • Bags • Tubular Components • Three-Dimensional Products • Heavy-Duty Sewing
