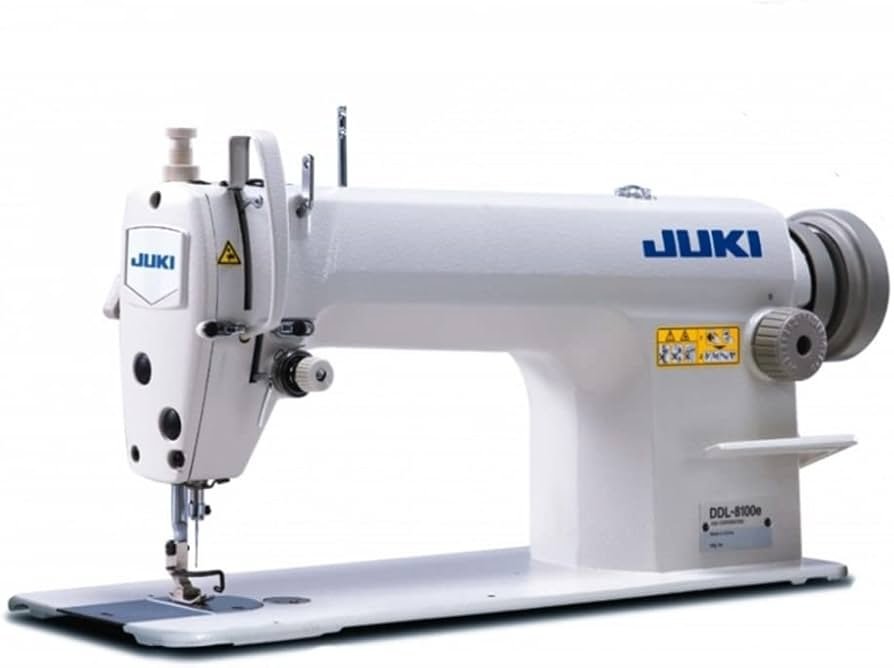

Juki DDL-8100 High-Speed Single Needle Lockstitch Sewing Machine

Description

Juki DDL-8100 High-Speed Single Needle Lockstitch Sewing Machine

High-speed single-needle industrial lockstitch machine designed for sewing light- to medium-weight fabrics in garment manufacturing, tailoring and general industrial sewing applications.

The Juki DDL-8100 is a reliable flatbed industrial sewing machine known for its smooth operation, consistent stitch quality and durable construction. Its sewing mechanism is designed to provide excellent responsiveness to different materials while maintaining stable thread tension and seam quality.

The machine features a bottom-feed system and automatic lubrication, making it suitable for continuous production environments. Its balanced machine frame helps reduce vibration and operating noise, improving operator comfort during long working hours.

With a maximum sewing speed of up to 4,500 stitches per minute and a maximum stitch length of 5mm, the Juki DDL-8100 is widely used for general garment production and medium-weight sewing applications.

Key Features

• Single-needle high-speed lockstitch machine
• Designed for light- to medium-weight materials
• Maximum sewing speed up to 4,500 stitches/min
• Bottom-feed / drop-feed mechanism
• Maximum stitch length of 5mm
• Automatic lubrication system
• Automatic-lubricating full rotary hook
• Reduced vibration and operating noise
• Stable and consistent stitch quality
• Low-tension sewing mechanism for improved material adaptability
• High presser-foot lift for easier material handling
• Easy-to-operate stitch length adjustment
• Durable industrial construction
• Suitable for continuous production environments
• Attachment mounting seats for specialized sewing applications

Specifications

• Brand: Juki
• Class: DDL-8100
• Model: DDL-8100e
• Machine Type: High-Speed Single-Needle Lockstitch Machine
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Number of Threads: 2
• Application: Light- to Medium-Weight Materials
• Feed System: Bottom Feed / Drop Feed
• Maximum Stitch Length: 5mm
• Maximum Sewing Speed: 4,500 stitches/min
• Needle Bar Stroke: 30.7mm
• Presser Foot Lift: 5.5mm by Hand / 13mm by Knee Lift
• Needle System: DB × 1 / 16 × 231
• Recommended Needle Size: #9–#18
• Feed Dog: 3-Row
• Hook: Automatic-Lubricating Full Rotary Hook
• Lubrication: Automatic
• Recommended Oil: Juki Machine Oil No. 7 / ISO VG7 Equivalent
• Machine Head Weight: Approximately 26kg

Specifications are based on the standard Juki DDL-8100e light- to medium-weight configuration; heavy-duty versions such as the DDL-8100eH have different specifications.

Suitable For:
Shirts • Trousers • Dresses • Uniforms • Blouses • Fashion Garments • Light Denim • Cotton Fabrics • Polyester Fabrics • Blended Fabrics • Workwear • School Uniforms • Tailoring • Garment Manufacturing • General Industrial Sewing
