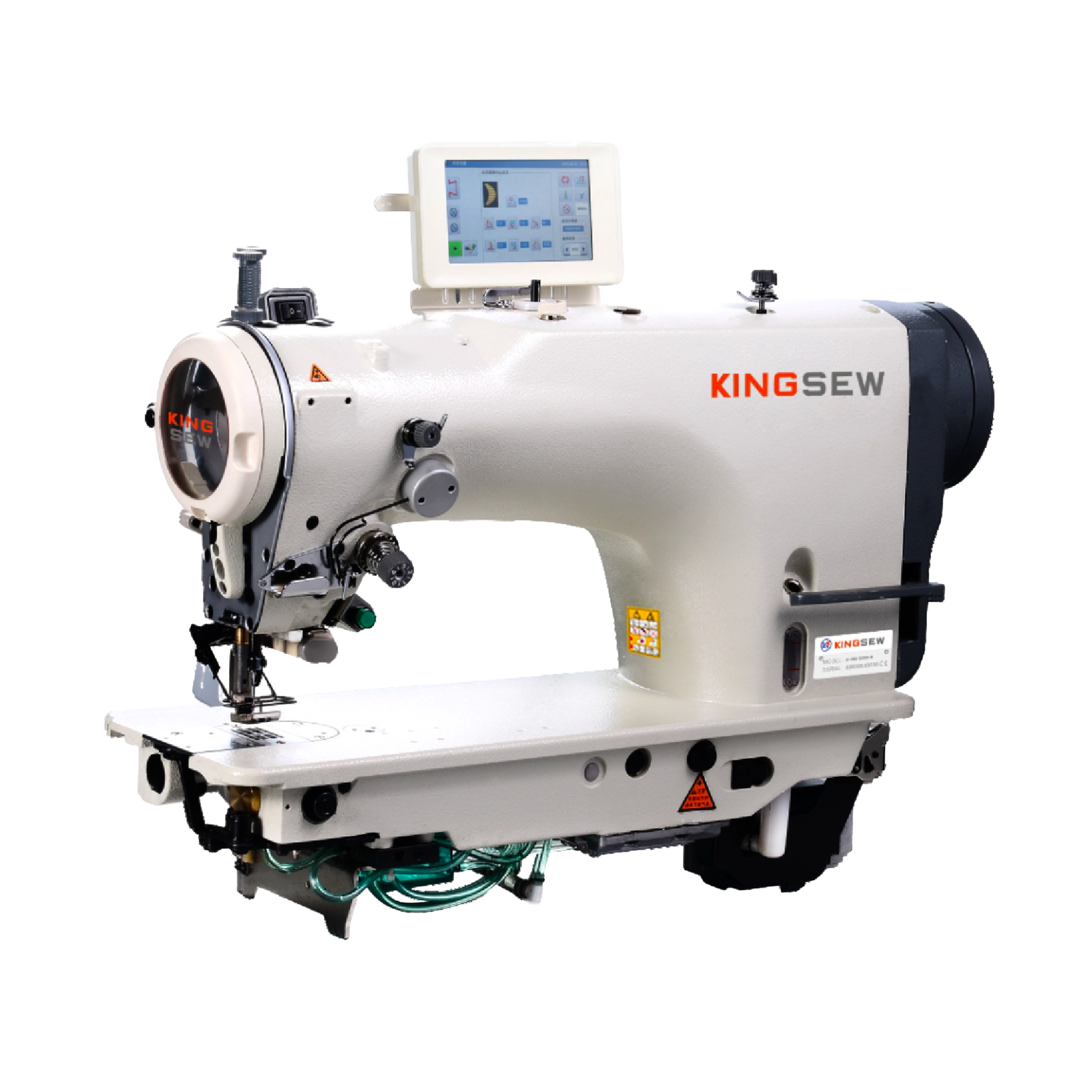

Kingsew KS-GNDJ-2297D3-SR High-Speed Single Needle Zigzag Sewing Machine

Description

### Kingsew KS-GNDJ-2297D3-SR High-Speed Single Needle Zigzag Sewing Machine



High-speed, computerized direct-drive zigzag lockstitch machine designed for decorative stitching, elastic attaching, and reinforcement on intimate apparel and lightweight garments. The **Kingsew KS-GNDJ-2297D3-SR** combines an **energy-saving direct-drive servo motor** with an advanced **stepping motor feeding system** to deliver consistent stitch tension, precise zigzag swing, and accurate feeding across delicate materials.

The machine is equipped with a clean semi-oil lubrication system to prevent oil stains on sensitive fabrics. It features an intuitive digital control screen preloaded with more than 350 zigzag stitch patterns, alongside mirror inversion functions for versatile design creation. Outfitted with automated production features—including automatic thread trimming, automatic thread wiping, automatic backtacking, and optional automatic presser foot lifting—it ensures neat, reliable seams in high-efficiency manufacturing environments.

**Key Features**

* High-speed computerized single-needle zigzag lockstitch machine

* Advanced stepping motor feeding system for accurate fabric feed and stitch formation

* Energy-saving direct-drive servo motor with integrated control panel

* Semi-oil lubrication system to keep workpieces clean and stain-free

* Preloaded with over 350 built-in zigzag and decorative stitching patterns

* Mirror inversion pattern function for symmetrical design sewing

* Automated cycle functions: auto thread trimmer, auto thread wiper, and auto bar-tacking (auto presser foot lifter optional)

* Zigzag bight width up to 8 mm with adjustable stitch length up to 2.5 mm

* Maximum sewing speed up to 4,000 stitches/min



**Specifications**

* Brand: Kingsew

* Class: Special Machine Series / Zigzag

* Model: KS-GNDJ-2297D3-SR

* Stitch Type: Computerized Lockstitch Zigzag

* Number of Needles: 1

* Feed System: Stepping Motor Feed System

* Maximum Stitch Length: 2.5 mm

* Zigzag Width (Bight): 8 mm

* Presser Foot Lift: 5.5 mm (by hand) / 10 mm (knee/automatic)

* Needle Bar Stroke: 33.3 mm

* Maximum Sewing Speed: 4,000 stitches/min

* Needle System: DPx5

* Needle Size: #11

* Lubrication System: Semi-Oil Lubrication

* Drive Type: Integrated Direct-Drive (DD) Servo Motor



**Suitable For:** Women’s Bras • Underwear & Lingerie • Swimwear • Lace & Elastic Attaching • Sportswear • Intimate Apparel • Decorative Edge Finishing • Garment Reinforcement
