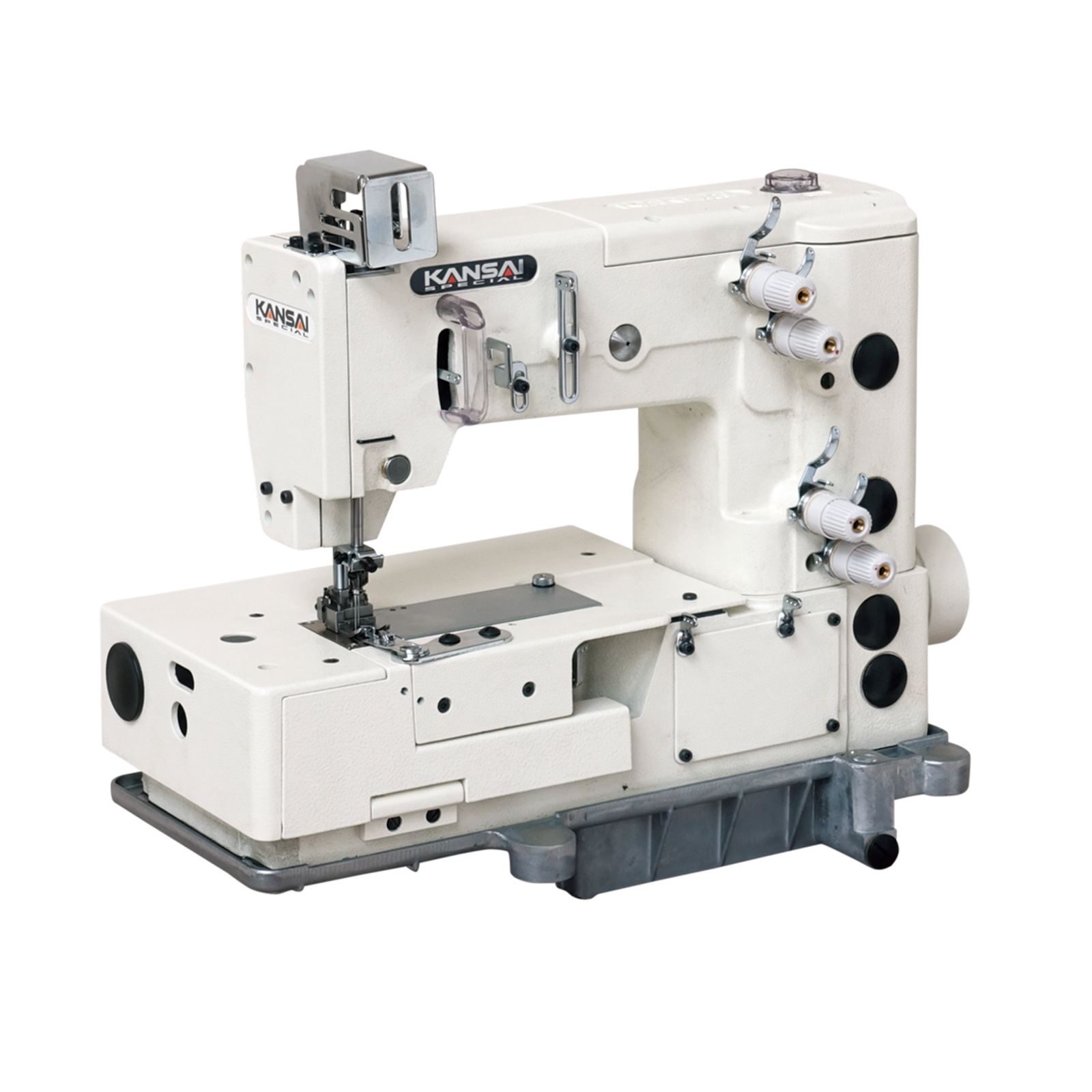

Kansai Special PX302-4W Flatbed Picoting and Decorative Zig-Zag Sewing Machine

Description

Kansai Special PX302-4W Flatbed Picoting and Decorative Zig-Zag Sewing Machine

High-speed industrial two-needle, four-thread flatbed double chainstitch sewing machine designed for decorative picoting, fagoting and zig-zag stitching applications. The Kansai Special PX302-4W is specially developed for producing attractive decorative stitch patterns on women’s wear, children’s clothing, handkerchiefs, table napkins and similar textile products.

The machine uses a built-in cam mechanism that moves the needles from side to side to create a precise four-point zig-zag stitch pattern. Its two-needle configuration can also produce decorative fagoting effects, adding value and visual appeal to finished garments and textile products.

The PX302-4W features differential feed for smooth material handling and is suitable for light-to-medium-weight fabrics. Guide and presser-foot attachments are available for picoting operations, allowing consistent decorative edge finishing and professional stitch quality.

Key Features

• Industrial flatbed decorative zig-zag sewing machine
• Two-needle, four-thread double chainstitch construction
• Four-point zig-zag stitching pattern
• Suitable for picoting and fagoting applications
• Built-in cam mechanism for controlled needle side movement
• Flatbed design for easy handling of fabric panels
• Differential feed for smooth material movement
• Produces decorative and flexible chainstitch seams
• Ideal for women’s wear and children’s garments
• Suitable for decorative textile and edge-finishing applications
• High-speed industrial operation up to 3,500 rpm
• Durable Japanese industrial machine construction

Specifications

• Brand: Kansai Special
• Model: PX302-4W
• Machine Type: Flatbed Picoting and Decorative Zig-Zag Sewing Machine
• Stitch Type: Double Chainstitch / Four-Point Zig-Zag
• Number of Needles: 2
• Number of Threads: 4
• Machine Bed: Flatbed
• Application: Decorative Stitching and Picoting
• Maximum Sewing Speed: 3,500 rpm
• Stitch Length: 0.9 mm
• Needle Type: Organ UO × 163 #11
• Needle Gauge: 2 × 5.55 mm
• Differential Feed Ratio: 0.8–1.5
• Presser Foot Lift: 8 mm
• Needle Bar Stroke: 31 mm
• Material Type: Light to Medium-Weight Fabrics

Suitable For:

Women’s Wear • Children’s Clothing • Babywear • Handkerchiefs • Table Napkins • Decorative Garments • Picoting • Fagoting • Decorative Edge Stitching • Fashion Textile Manufacturing
