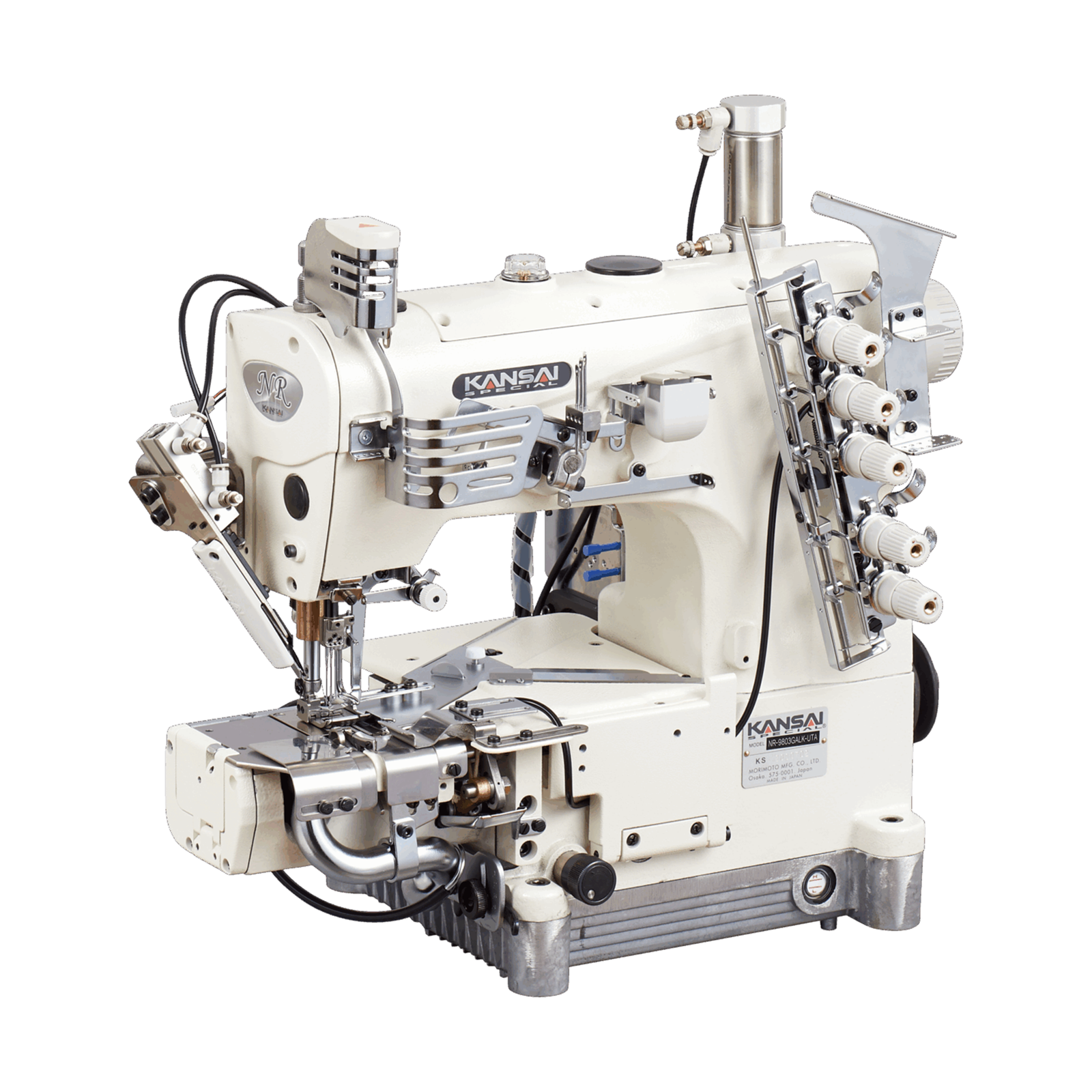

Kansai Special NR-9803GALK-UTA Cylinder Bed Coverstitch Sewing Machine

Description

Kansai Special NR-9803GALK-UTA Cylinder Bed Coverstitch Sewing Machine

High-speed industrial three-needle cylinder-bed coverstitch sewing machine designed for hemming, sleeve finishing and sewing tubular garment components. The Kansai Special NR-9803GALK-UTA produces top and bottom cover stitches, making it ideal for professional finishing operations on knitwear and stretch garments.

The machine features a cylindrical bed with a circumference of approximately 280 mm, allowing easy handling of tubular components such as sleeves, cuffs, garment bottoms and other circular sections. Its three-needle, five-thread configuration produces flexible and durable coverstitch seams suitable for stretch fabrics.

The NR-9803GALK-UTA is equipped with a left-side fabric trimming mechanism for clean edge preparation during hemming operations. Pneumatic thread trimming and presser-foot lifting functions help improve operator efficiency and productivity in industrial garment manufacturing. The differential feed system ensures smooth material movement and helps maintain consistent seam quality on lightweight and medium-weight fabrics.

Key Features

• Industrial three-needle cylinder-bed coverstitch machine
• Produces top and bottom cover stitches
• Designed for hemming and tubular garment finishing
• Cylinder bed suitable for sleeves, cuffs and garment bottoms
• Three-needle, five-thread configuration
• Left-side fabric trimming mechanism
• Pneumatic thread trimming for increased productivity
• Automatic or pneumatic presser-foot lifting system
• Differential feed for smooth fabric handling
• Suitable for knitwear and stretch materials
• High-speed operation for industrial garment production

Specifications

• Brand: Kansai Special
• Model: NR-9803GALK-UTA
• Machine Type: Cylinder Bed Coverstitch Sewing Machine
• Stitch Type: Coverstitch / Chainstitch
• Number of Needles: 3
• Number of Threads: 5
• Machine Bed: Cylinder Bed
• Cylinder Circumference: Approximately 280 mm
• Needle Gauge: 6.4 mm (1/4 inch)*
• Feed System: Bottom Differential Feed
• Maximum Sewing Speed: Up to 5,500 stitches/min
• Stitch Length: Approximately 1.6–4.2 mm
• Presser Foot Lift: Up to 6 mm
• Needle Bar Stroke: 33 mm
• Needle System: UY × 128
• Trimming System: Left-Side Fabric Trimmer
• Thread Trimming: Pneumatic
• Material Type: Light to Medium-Weight Knit and Stretch Fabrics

Suitable For:

T-Shirt Hemming • Sleeve Finishing • Knitwear • Sportswear • Activewear • Underwear • Stretch Garments • Garment Bottom Hemming • Cuffs • Tubular Garment Components

*The NR-9803GALK-UTA is available in different needle-gauge configurations, including 5.6 mm and 6.4 mm versions.
