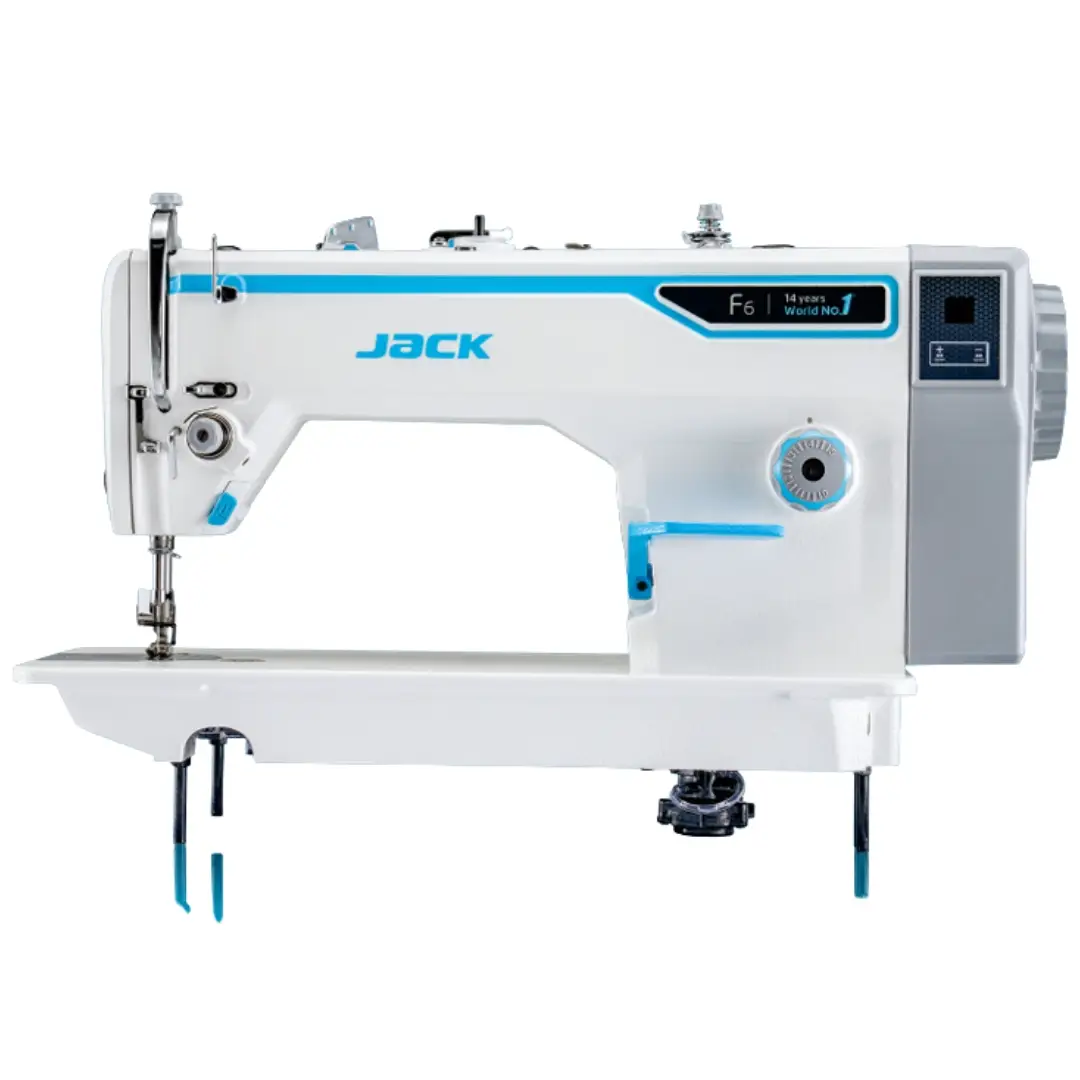

Jack F6 High-Speed Direct-Drive Lockstitch Sewing Machine

Description

Jack F6 High-Speed Direct-Drive Lockstitch Sewing Machine

High-speed single-needle lockstitch machine designed for efficient sewing of light- to medium-weight materials in garment manufacturing, tailoring and general industrial sewing applications.

The Jack F6 is a new-generation industrial lockstitch machine equipped with an integrated energy-saving direct-drive servo motor. The compact motor design provides quiet operation, reduced vibration and improved energy efficiency while eliminating the need for a conventional belt-driven motor system.

The machine features improved material-handling performance and can sew through multiple layers of fabric, including up to approximately 15 layers of denim under suitable conditions. Its electronic control system allows easy adjustment of sewing speed and needle stopping position, making the machine suitable for both high-speed production and precision sewing operations.

With automatic lubrication, an integrated LED work light, bobbin winder and stitch-by-stitch function, the Jack F6 provides a practical and reliable solution for garment factories, tailoring units and industrial sewing workshops.

Key Features

• Single-needle high-speed lockstitch machine
• Integrated energy-saving direct-drive servo motor
• Maximum sewing speed up to 5,000 stitches/min
• Designed for light- to medium-weight materials
• Improved thickness handling for multiple fabric layers
• Can sew up to approximately 15 layers of denim under suitable conditions
• Electronic speed adjustment
• Adjustable needle up/down stopping position
• Manual reverse stitching lever for backtacking
• Lightweight ergonomic reverse lever
• Stitch-by-stitch function for precision sewing
• Integrated dimmable LED work light
• Built-in bobbin winder
• Manual thread cutting knife
• Automatic lubrication system
• Safety switch for safer operation and maintenance
• Wide-voltage electronic control system on applicable versions
• Quiet operation with reduced vibration

Specifications

• Brand: Jack
• Class: F6
• Model: Jack F6
• Machine Type: High-Speed Direct-Drive Lockstitch Machine
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Number of Threads: 2
• Feed System: Bottom Feed / Drop Feed
• Maximum Stitch Length: 5mm
• Maximum Sewing Speed: 5,000 stitches/min
• Presser Foot Lift: 1–5mm by Hand / Up to 13mm by Knee Lift
• Needle System: DB × 1 / 16 × 231
• Needle Size: No. 11–18
• Hook Type: Standard Rotary Hook
• Motor: Integrated Direct-Drive AC Servo Motor
• Lubrication: Automatic / Central Lubrication
• Needle Positioning: Electronic Needle Up/Down Positioning
• Lighting: Integrated Adjustable LED Light
• Bobbin Winder: Built-In
• Application: Light- to Medium-Weight Materials

Specifications are based on the standard Jack F6 configuration; heavy-material versions such as F6-H and F6-HL have different specifications.

Suitable For:
Shirts • T-Shirts • Trousers • Dresses • Uniforms • Light Denim • Workwear • Fashion Garments • Cotton Fabrics • Polyester Fabrics • Blended Fabrics • Garment Manufacturing • Tailoring • Sample Rooms • General Industrial Sewing
