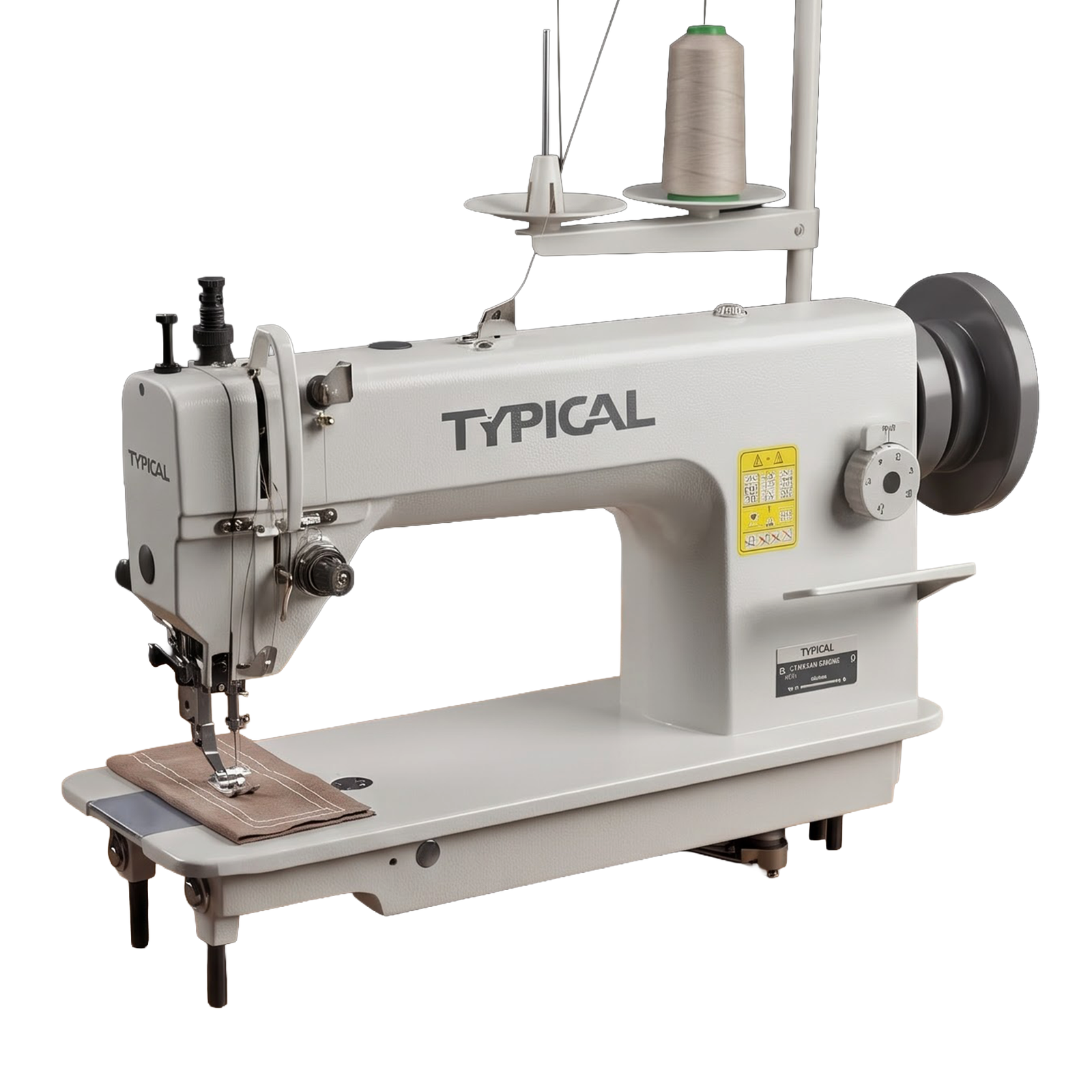

Typical GC-202 Heavy-Duty Large Hook Lockstitch Sewing Machine

Description

Typical GC-202 Heavy-Duty Large Hook Lockstitch Sewing Machine

Heavy-duty single-needle lockstitch machine designed for sewing medium- to heavy-weight materials where strong stitching, reliable feeding and durable industrial performance are required.

The Typical GC-202 features a bottom-feed system and large vertical hook, providing reliable material feeding and increased bobbin capacity for longer sewing runs. Its robust construction makes it suitable for thicker materials and demanding industrial sewing applications.

The large working area and high presser-foot clearance provide sufficient space for handling bulky workpieces. The GC-202 is commonly used for leather goods, bags, luggage, upholstery, canvas products and other medium- to heavy-weight materials.

Key Features

• Single-needle industrial lockstitch machine
• Heavy-duty construction for medium- to heavy-weight materials
• Large vertical hook for increased bobbin capacity
• Bottom-feed system for reliable material feeding
• Maximum stitch length: up to 8mm
• High presser-foot lifting capacity
• Automatic lubrication system
• Large working space for bulky materials
• Suitable for heavier threads
• Durable construction for continuous industrial operation
• Available with direct-drive motor configurations

Specifications

• Brand: Typical
• Class: GC-202
• Model: GC-202
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Feed System: Bottom Feed
• Maximum Stitch Length: 8mm
• Maximum Sewing Speed: Up to 3,200 stitches/min
• Presser Foot Lift: Up to 8mm by hand / 16mm by knee
• Needle Bar Stroke: 37mm
• Needle System: DP×17
• Hook: Large Vertical Hook
• Working Space: Approximately 260 × 120mm
• Lubrication: Automatic
• Motor: Industrial / Direct-Drive Compatible
• Machine Type: Heavy-Duty Industrial Lockstitch

Suitable For:

Leather Goods • Handbags • Luggage • Canvas Products • Tents • Upholstery • Sofa Manufacturing • Car Seats • Furniture • Heavy Fabrics • Industrial Sewing Applications
