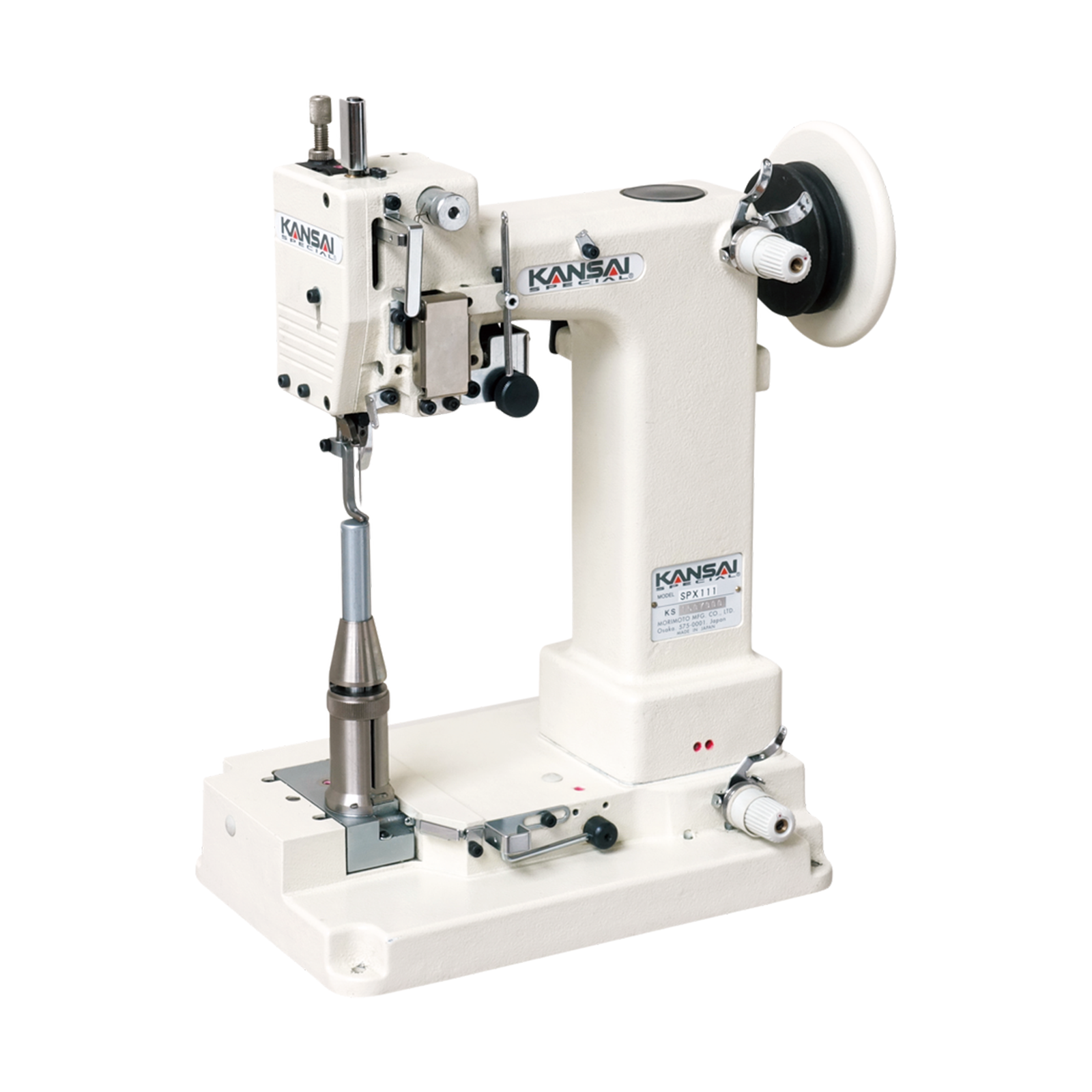

Kansai Special SPX111E Extra Small Post Bed Chain Stitch Sewing Machine

Description

Kansai Special SPX111E Extra Small Post Bed Chain Stitch Sewing Machine

Specialized single-needle extra-small post bed double chain stitch machine designed for sewing in extremely narrow and difficult-to-reach areas. The Kansai Special SPX111E is particularly designed for glove manufacturing, where precise sewing around fingers and other small tubular components is required.

The machine features a compact 15mm diameter post bed with a 45mm post length, providing excellent accessibility for detailed sewing operations. Its upper-feed mechanism helps maintain stable material movement, while the double chain stitch construction eliminates the need for a conventional bobbin, supporting efficient continuous production.

Key Features

• Single-needle extra-small post bed sewing machine
• Double chain stitch mechanism
• Specifically designed for glove finger sewing
• Extra-small 15mm diameter post head
• 45mm post length for sewing narrow tubular areas
• Upper feed mechanism for controlled material feeding
• No conventional bobbin required
• Continuous chain stitch for efficient production
• Stable stitch formation mechanism
• Original Kansai Special looper system
• Suitable for sewing small and difficult-to-reach components
• Compact and specialized industrial construction
• Designed for medium- to heavy-weight work gloves

Specifications

• Brand: Kansai Special
• Model: SPX111E
• Machine Type: Extra Small Post Bed Double Chain Stitch Machine
• Stitch Type: Double Chain Stitch
• Number of Needles: 1
• Number of Threads: 2
• Application: Glove Stitching
• Suitable Material: Medium- to Heavy-Weight Work Gloves
• Feed System: Upper Feed
• Post Diameter: 15mm
• Post Length: 45mm
• Needle System: UY × 128LE
• Needle Size: #16
• Needle Bar Stroke: 24.5mm
• Stitch Length: Approximately 3.5mm per stitch
• Maximum Sewing Speed: Up to 900 stitches/min
• Recommended Operating Speed: Approximately 800 stitches/min

The SPX111E is part of Kansai Special’s SPX series of extra-small post-bed double chain stitch machines designed specifically for working in very small sewing areas such as glove fingers.

Suitable For:
Work Gloves • Safety Gloves • Leather Gloves • Fabric Gloves • Glove Fingers • Small Tubular Components • Narrow Textile Parts • Industrial Glove Manufacturing • Protective Gloves • Specialized Chain Stitch Applications
