Typical GC-202D Heavy-Duty Large Hook Lockstitch Sewing Machine

Description

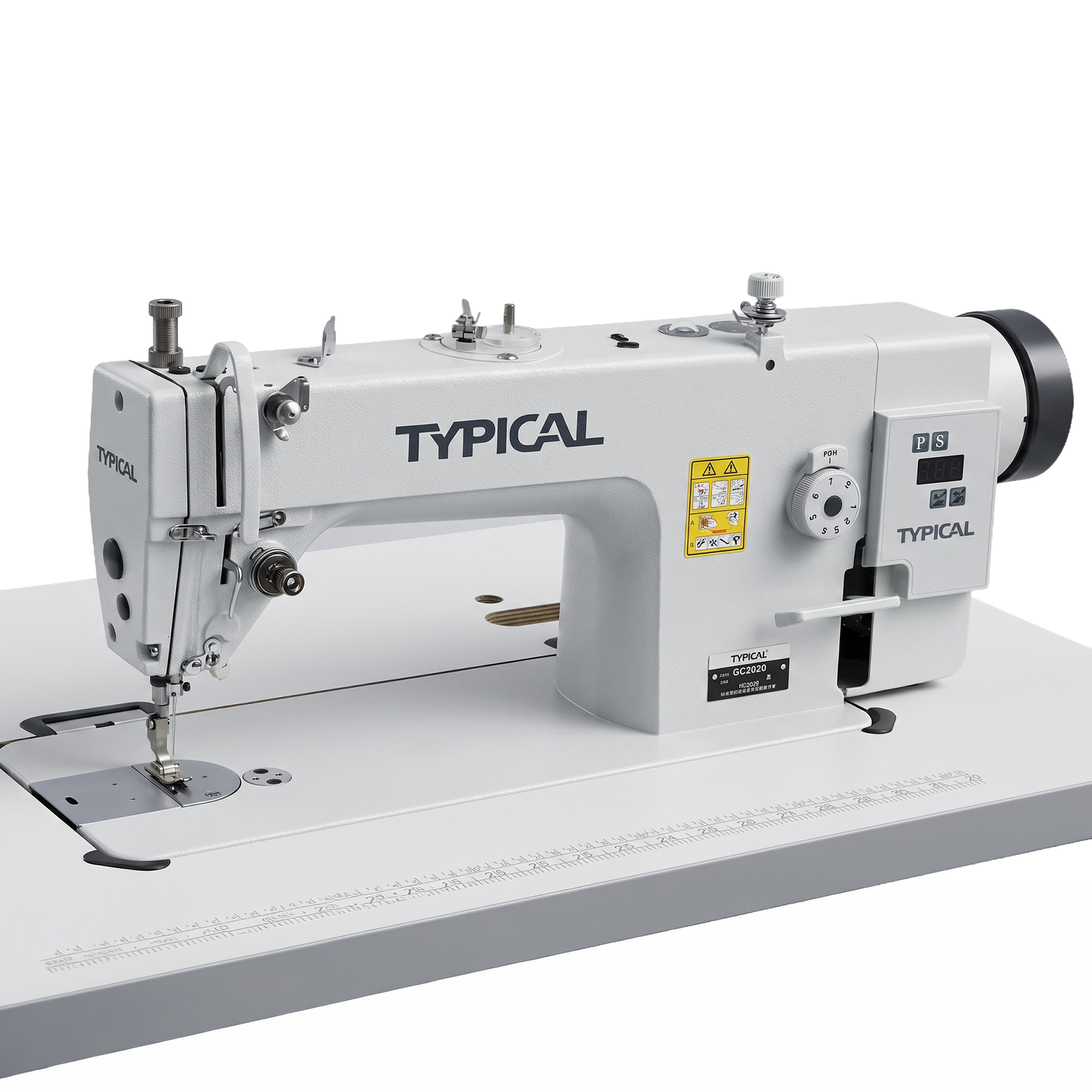

Typical GC-202D Heavy-Duty Large Hook Lockstitch Sewing Machine

Heavy-duty single-needle lockstitch machine designed for sewing medium- to heavy-weight materials where strong stitching, reliable feeding and increased bobbin capacity are required.

The Typical GC-202D features a bottom-feed system with a large vertical hook, allowing the machine to handle heavier threads and multiple layers of material effectively. Its robust construction and high presser-foot lifting capacity make it suitable for applications involving leather, canvas, upholstery and other demanding materials.

The machine provides a maximum stitch length of 8mm and a working space of approximately 260 × 120mm, giving the operator sufficient clearance for larger workpieces. The GC-202D is commonly used for bags, luggage, sofa and upholstery work, tents, car seats and other heavy-material products.

Key Features

• Single-needle industrial lockstitch machine
• Heavy-duty construction for medium- to heavy-weight materials
• Large-capacity vertical hook for increased bobbin capacity
• Bottom-feed system for reliable material feeding
• Maximum stitch length up to 8mm
• High presser-foot lifting capacity
• Automatic lubrication system
• Direct-drive motor option for fast starting and energy-efficient operation
• Available D2 configuration with automatic thread trimming and other automatic functions
• Large working space for bulky materials
• Suitable for heavier threads and demanding sewing applications

Specifications

• Brand: Typical
• Class: GC-202D
• Model: GC-202D
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Feed System: Bottom Feed
• Maximum Stitch Length: 8mm
• Maximum Sewing Speed: Up to 3,200 stitches/min
• Presser Foot Lift: Up to 8/16mm
• Needle Bar Stroke: 37mm
• Needle System: DP×17
• Needle Size: Nm 125–160 (20–23)
• Hook: Large Vertical Hook
• Working Space: 260 × 120mm
• Lubrication: Automatic
• Motor: Direct-Drive / Power-Saving Motor
• Automatic Functions: Thread Trimmer, Automatic Back-Tack and Thread Clamp on applicable D2 configuration

Suitable For:

Leather Goods • Bags • Luggage • Canvas Products • Tents • Sofa & Upholstery • Car Seats • Furniture • Heavy Fabrics • Medium- to Heavy-Weight Materials
