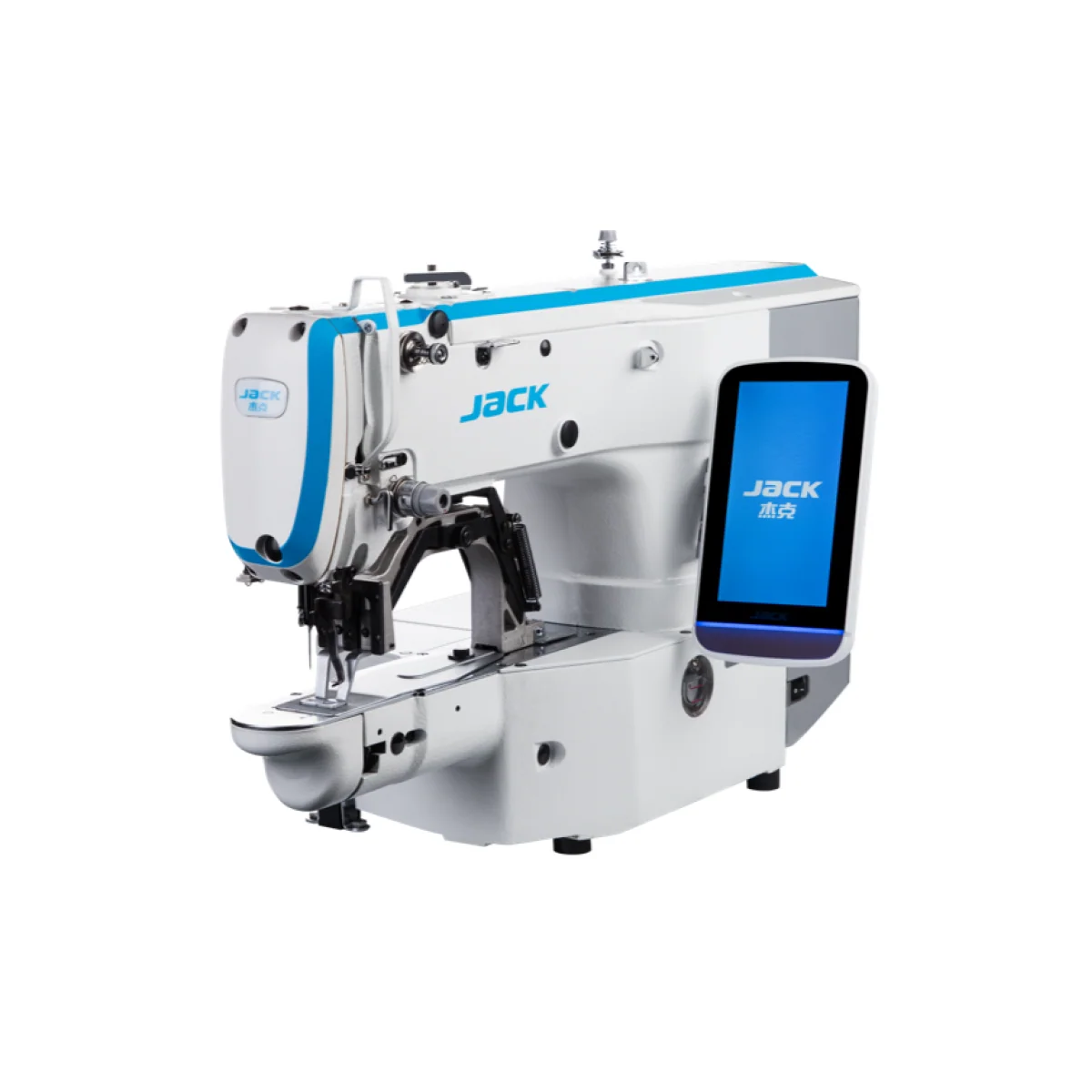

Jack JK-T1900 Electronic High-Speed Bartacking Sewing Machine

Description

Jack JK-T1900 Electronic High-Speed Bartacking Sewing Machine

Computer-controlled high-speed bartacking machine designed for reinforcing stress points and producing consistent programmed stitch patterns on garments, bags and industrial textile products.

The Jack JK-T1900 is an electronic programmable bartacking machine designed for high-speed, accurate and repeatable reinforcement stitching. Its computerized control system allows operators to select and edit sewing patterns easily through the control panel, making it suitable for efficient production environments.

The machine features a 40 × 30mm sewing area and is designed primarily for light- to medium-weight materials. With programmable bartack patterns, automatic thread trimming and a direct-drive servo motor, the JK-T1900 helps improve productivity while maintaining consistent stitch quality.

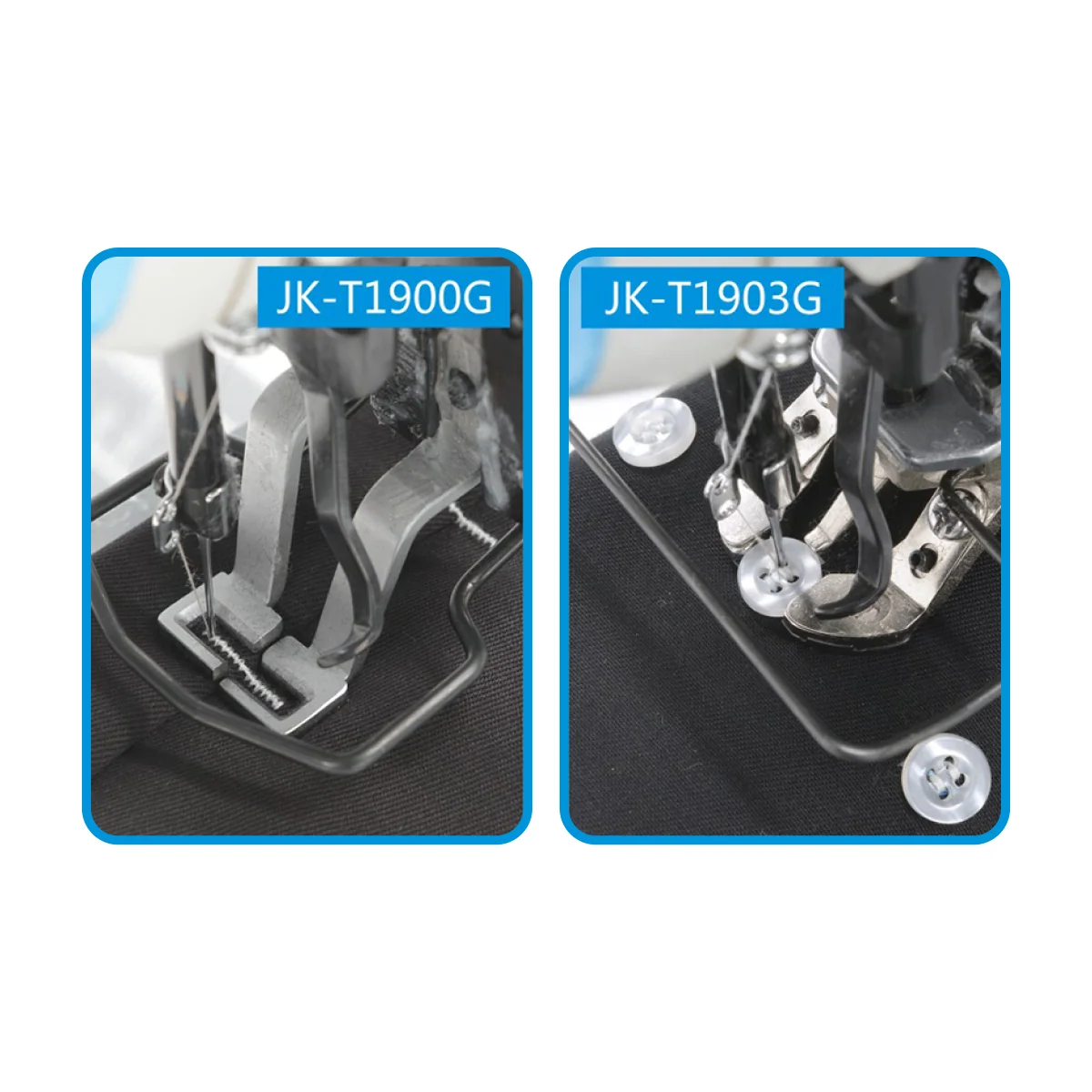

Depending on the configuration, the JK-T1900 can also be converted for button attaching using interchangeable clamp kits, making it a versatile solution for garment and textile manufacturers.

Key Features

• Computer-controlled electronic bartacking machine
• High-speed programmable lockstitch operation
• Suitable for reinforcement stitching and bartacking applications
• Sewing area of 40 × 30mm

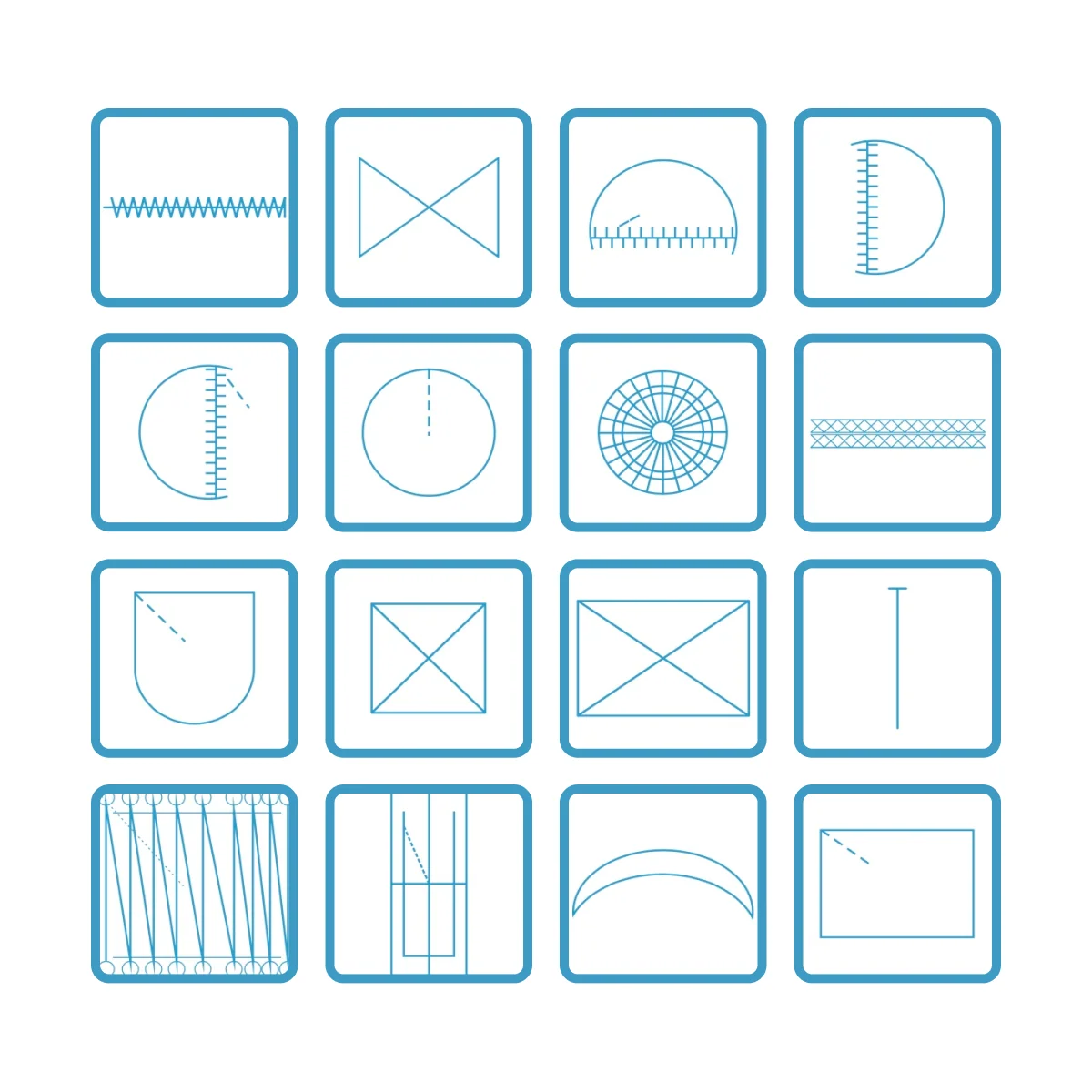

• Up to 100 programmable bartacking patterns
• Easy-to-use electronic touch-screen control panel
• Automatic thread trimming for improved productivity
• Direct-drive servo motor integrated into the machine head
• Consistent and accurate stitch formation
• Suitable for reinforcing high-stress areas
• Semi-dry/dry-head design helps reduce the risk of oil stains
• Interchangeable clamp system allows bartacking and button-attaching applications on compatible versions
• Suitable for continuous industrial production

Specifications

• Brand: Jack
• Class: JK-T1900
• Model: JK-T1900GSK / JK-T1900 Series
• Machine Type: Computer-Controlled Electronic Bartacking Machine
• Stitch Type: Lockstitch Bartack
• Number of Needles: 1
• Number of Threads: 2
• Sewing Area: 40 × 30mm
• Maximum Sewing Speed: Up to 3,200 stitches/min
• Presser Foot Lift: 13mm
• Needle System: DP × 5 / 135 × 5
• Recommended Needle Size: No. 16
• Sewing Material: Light to Medium-Weight Materials
• Bartacking Pattern Capacity: Up to 100 Patterns

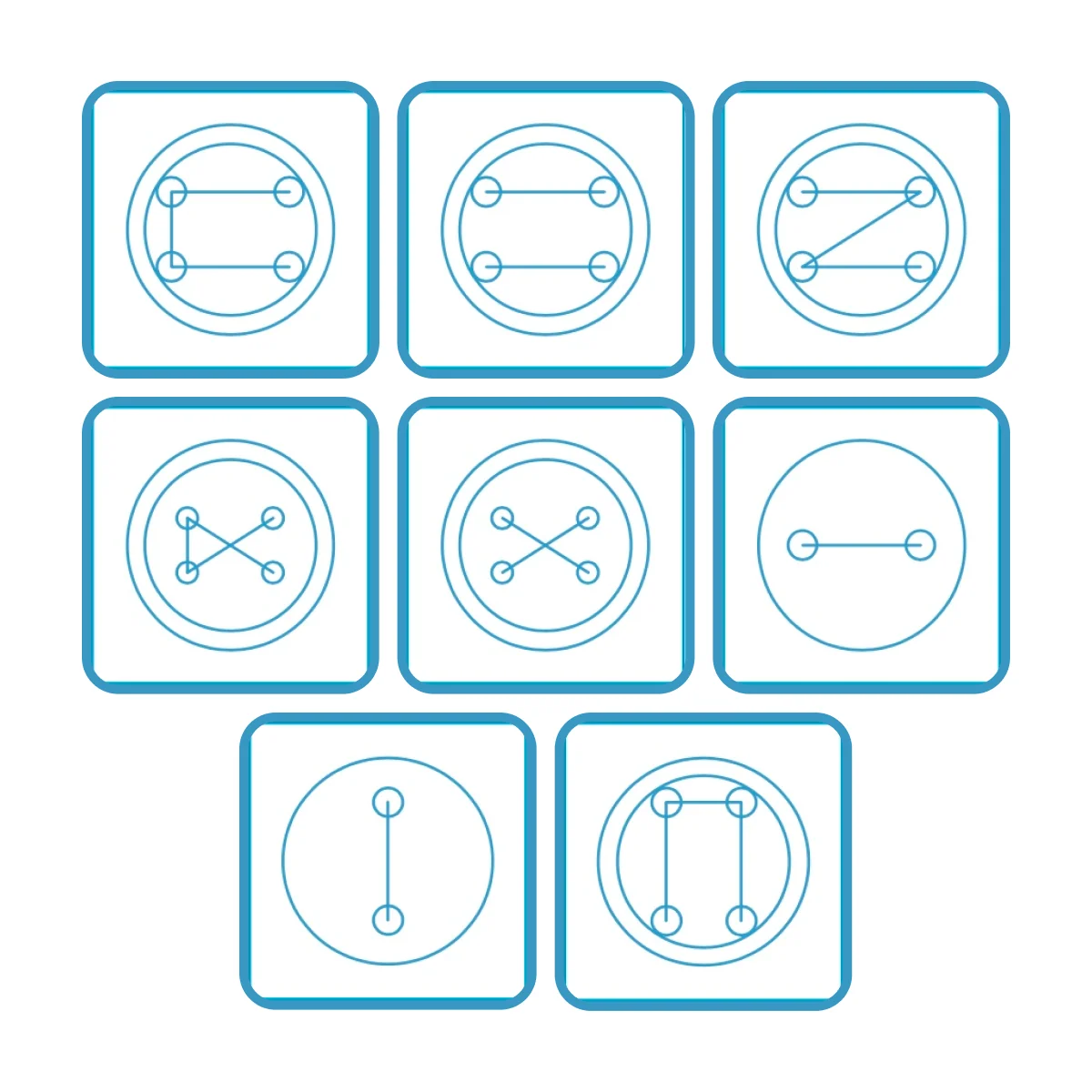

• Button Attaching Pattern Capacity: Up to 50 Patterns on compatible versions
• Motor: Built-in Direct-Drive Servo Motor
• Automatic Functions: Thread Trimming and Programmable Pattern Sewing

Specifications may vary depending on the exact JK-T1900 subclass or version.

Suitable For:
Jeans • Denim Wear • Trousers • Workwear • Uniforms • Jackets • Sportswear • Bags • Backpacks • Luggage • Belts • Labels • Reinforcement Stitching • Bartacking High-Stress Areas
