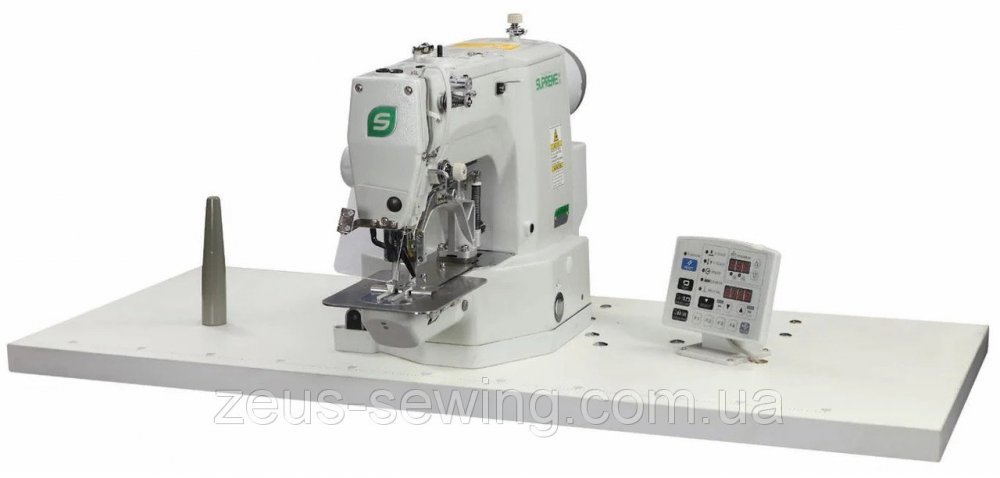

Supreme 430D Electronic Direct-Drive Bartacking Sewing Machine

Description

Supreme 430D Electronic Direct-Drive Bartacking Sewing Machine

Computer-controlled high-speed bartacking machine designed for reinforcing stress points and producing precise, repeatable stitch patterns on garments, denim, bags and other industrial textile products.

The Supreme 430D is an electronic direct-drive lockstitch bartacking machine designed for high-speed and accurate reinforcement sewing. Its computerized control system allows programmed bartack patterns to be sewn consistently, making it suitable for mass-production environments where speed, accuracy and repeatability are important.

With a maximum sewing area of 40 × 30mm, the machine is suitable for standard bartacks, reinforcement patterns and small programmed sewing applications. The direct-drive servo motor provides efficient operation while reducing noise and energy consumption.

The machine is commonly used for reinforcing high-stress areas such as pocket corners, belt loops, zipper ends and other garment components. The 430D-type electronic bartacking platform is available in versions suitable for medium-weight, heavy-weight and knitted materials.

Key Features

• Computer-controlled electronic bartacking machine
• Single-needle lockstitch operation
• High-speed programmable bartacking
• Maximum sewing area of 40 × 30mm
• Direct-drive servo motor for efficient and responsive operation
• Maximum sewing speed up to 3,200 stitches/min
• Suitable for reinforcement and small pattern sewing
• Automatic thread trimming system
• Automatic presser-foot/work-clamp lifting
• Programmable sewing patterns for consistent production
• Electronic control panel for pattern selection and adjustment
• Oil-free or dry needle-bar design helps reduce the risk of oil stains
• Low noise and reduced vibration during operation
• Suitable for continuous industrial production

Specifications

• Brand: Supreme
• Class: 430D
• Model: Supreme 430D
• Machine Type: Electronic Direct-Drive Bartacking Machine
• Stitch Type: 301 Lockstitch Bartack
• Number of Needles: 1
• Number of Threads: 2
• Maximum Sewing Area: 40 × 30mm
• Maximum Sewing Speed: Up to 3,200 stitches/min
• Stitch Length Range: 0.05–12.7mm
• Feed Mechanism: Electronic Intermittent Feed
• Work Clamp Lift: Up to 17mm
• Needle System: DP × 5 / DP × 17
• Hook: Shuttle Hook
• Motor: Built-in Direct-Drive Servo Motor
• Data Storage: Electronic Pattern Memory
• Automatic Functions: Thread Trimming, Thread Wiping and Work Clamp Lifting

The specifications above follow the standard 430D electronic bartacking configuration; exact details may vary depending on the Supreme version and material subclass.

Suitable For:
Jeans • Denim Wear • Trousers • Shirts • Workwear • Uniforms • Jackets • Sportswear • Belt Loops • Pocket Corners • Zipper Ends • Bags • Backpacks • Reinforcement Stitching • Bartacking High-Stress Areas
