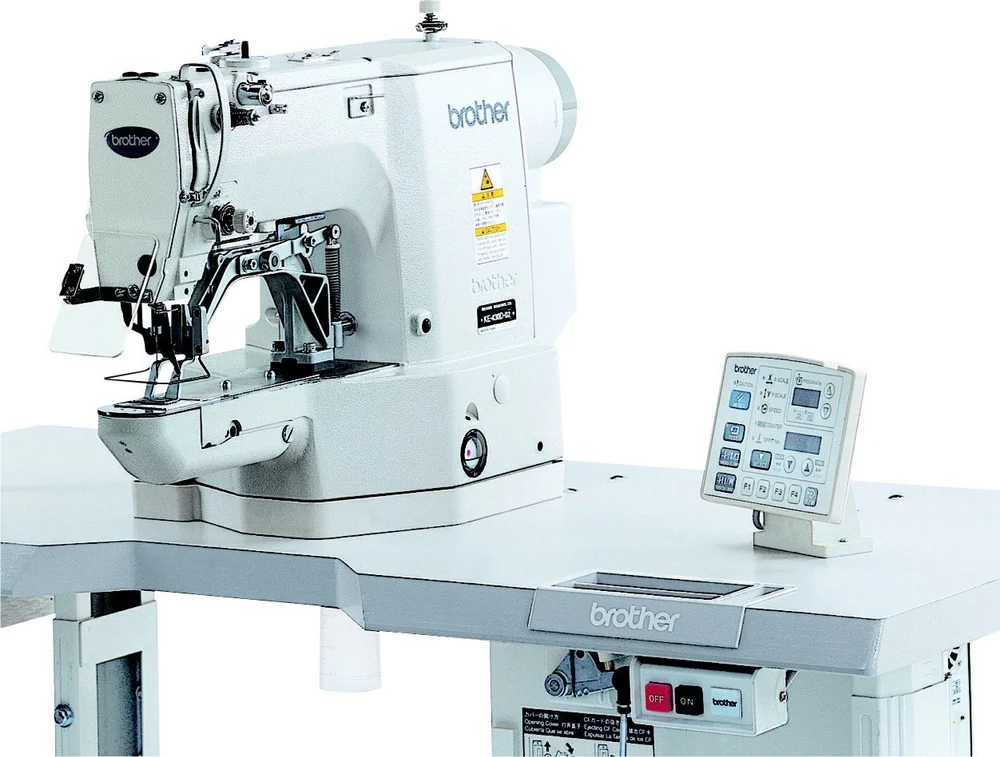

Brother KE-430D Electronic Direct-Drive Bartacking Sewing Machine

Description

Brother KE-430D Electronic Direct-Drive Bartacking Sewing Machine

Computer-controlled high-speed lockstitch bartacking machine designed for reinforcing stress points and producing accurate, repeatable stitch patterns on garments, denim and industrial textile products.

The Brother KE-430D is an electronic direct-drive bartacking machine designed for high productivity and precise programmed sewing. Its computer-controlled system allows complex bartack and reinforcement patterns to be reproduced consistently, making it suitable for garment factories and industrial production environments.

With a maximum sewing area of 40 × 30mm, the machine can perform a wide range of reinforcement patterns for applications such as pocket corners, belt loops, zipper ends and other high-stress areas. The pulse-motor-driven intermittent feed mechanism provides accurate pattern movement and consistent stitch formation.

The KE-430D is equipped with automatic thread trimming, thread wiping and thread nipping functions as standard. Its electronic direct-drive system combines high-speed operation with precise control, making it a reliable solution for repetitive industrial bartacking applications.

Key Features

• Computer-controlled electronic bartacking machine
• Single-needle lockstitch operation
• Electronic direct-drive system
• High-speed sewing up to 3,200 stitches/min
• Maximum sewing area of 40 × 30mm
• Accurate programmable bartack and reinforcement patterns
• Pulse-motor-driven Y-θ intermittent feed mechanism
• Automatic thread trimming system
• Automatic thread wiper
• Automatic thread nipper
• Up to 89 pre-programmed sewing patterns
• Additional sewing patterns can be stored in memory
• Suitable for ordinary materials, denim and selected specialized materials
• Consistent stitch quality for high-volume production

Specifications

• Brand: Brother
• Class: KE-430D
• Model: KE-430D
• Machine Type: Electronic Direct-Drive Lockstitch Bartacking Machine
• Stitch Type: Single-Needle 301 Lockstitch
• Number of Needles: 1
• Number of Threads: 2
• Maximum Sewing Speed: 3,200 stitches/min
• Maximum Sewing Area: 40 × 30mm
• Stitch Length Range: 0.05–12.7mm
• Feed Mechanism: Y-θ Intermittent Feed, Pulse-Motor Driven
• Maximum Stitch Capacity: 210,000 Stitches
• Work Clamp Lift: Pulse-Motor Driven
• Maximum Work Clamp Height: 17mm
• Hook: Shuttle Hook
• Thread Trimmer: Standard
• Thread Wiper: Standard
• Thread Nipper: Standard
• Standard Sewing Patterns: 89 Patterns
• User Programs: 50
• Cycle Programs: 9
• Data Storage: Flash Memory
• Motor: AC Servo Motor, 550W

The Brother KE-430D was produced in different subclasses for applications including ordinary materials and denim, so exact configuration details may vary by version.

Suitable For:
Jeans • Denim Wear • Trousers • Workwear • Uniforms • Jackets • Shirts • Sportswear • Pocket Corners • Belt Loops • Zipper Ends • Bags • Reinforcement Stitching • Bartacking High-Stress Areas
