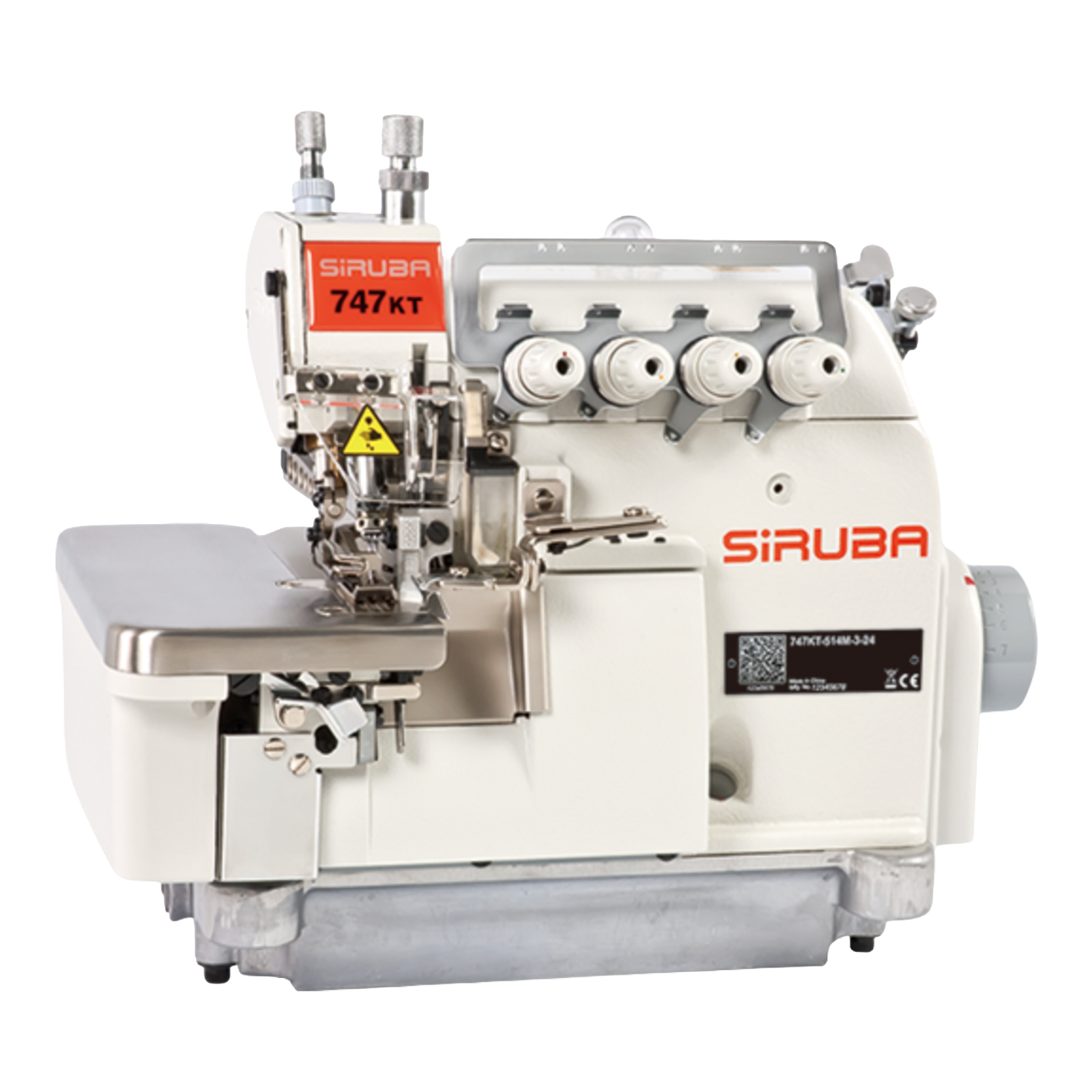

Siruba 747 High-Speed 4-Thread Overlock Sewing Machine

Description

Siruba 747 High-Speed 4-Thread Overlock Sewing Machine

High-speed industrial overlock sewing machine designed for seam joining, edge finishing and garment production. The Siruba 747 Series is a 2-needle, 4-thread overlock machine widely used for sewing light- to medium-weight fabrics, knitwear and general garment materials.

The machine uses a differential feed system to provide smooth and controlled fabric movement, helping prevent stretching, puckering and distortion during sewing. Its high-speed mechanism delivers consistent stitch formation and high production efficiency, making it suitable for continuous industrial use.

The Siruba 747 Series is available in different subclasses and configurations, with the common 747L-514 configuration producing a 4-thread overlock safety stitch. Its reliable construction, smooth operation and versatile fabric handling make it a popular choice for garment factories and tailoring production units.

Key Features

• High-speed industrial overlock sewing machine
• 2-needle, 4-thread overlock configuration
• 514 overlock safety stitch
• Differential feed system for controlled fabric feeding
• Helps prevent stretching and puckering of knitted fabrics
• Suitable for seam joining and edge finishing
• Maximum sewing speed up to 6,500 stitches/min
• Smooth and stable high-speed operation
• Adjustable differential feed ratio
• Automatic lubrication system
• Compact and durable industrial construction
• Suitable for continuous garment production
• Available with optional direct-drive servo motor and automatic devices

Specifications

• Brand: Siruba
• Class: 747 Series
• Common Model: 747L-514M3-24
• Machine Type: Industrial Overlock Sewing Machine
• Stitch Type: 514 Overlock / Safety Stitch
• Number of Needles: 2
• Number of Threads: 4
• Needle Gauge: 2mm
• Overedge Width: 4mm
• Seam Width: Approximately 6mm
• Differential Feed Ratio: 0.7–2.0
• Maximum Stitch Length: 3.6mm
• Maximum Sewing Speed: Up to 6,500 stitches/min
• Presser Foot Lift: Approximately 5.5–6mm
• Needle System: B27 / DC×27
• Recommended Needle Size: #11, depending on material
• Lubrication: Automatic
• Feed System: Differential Feed

Suitable For: T-Shirts • Knitwear • Sportswear • Underwear • Shirts • Blouses • Casual Wear • Children’s Wear • Stretch Fabrics • Woven Fabrics • Garment Manufacturing • Seam Joining • Edge Finishing • Textile Production

Note: The Siruba 747 Series includes different subclasses designed for various fabric weights and applications. Exact specifications may vary depending on the selected model, such as 747L, 747K or specialized versions.
