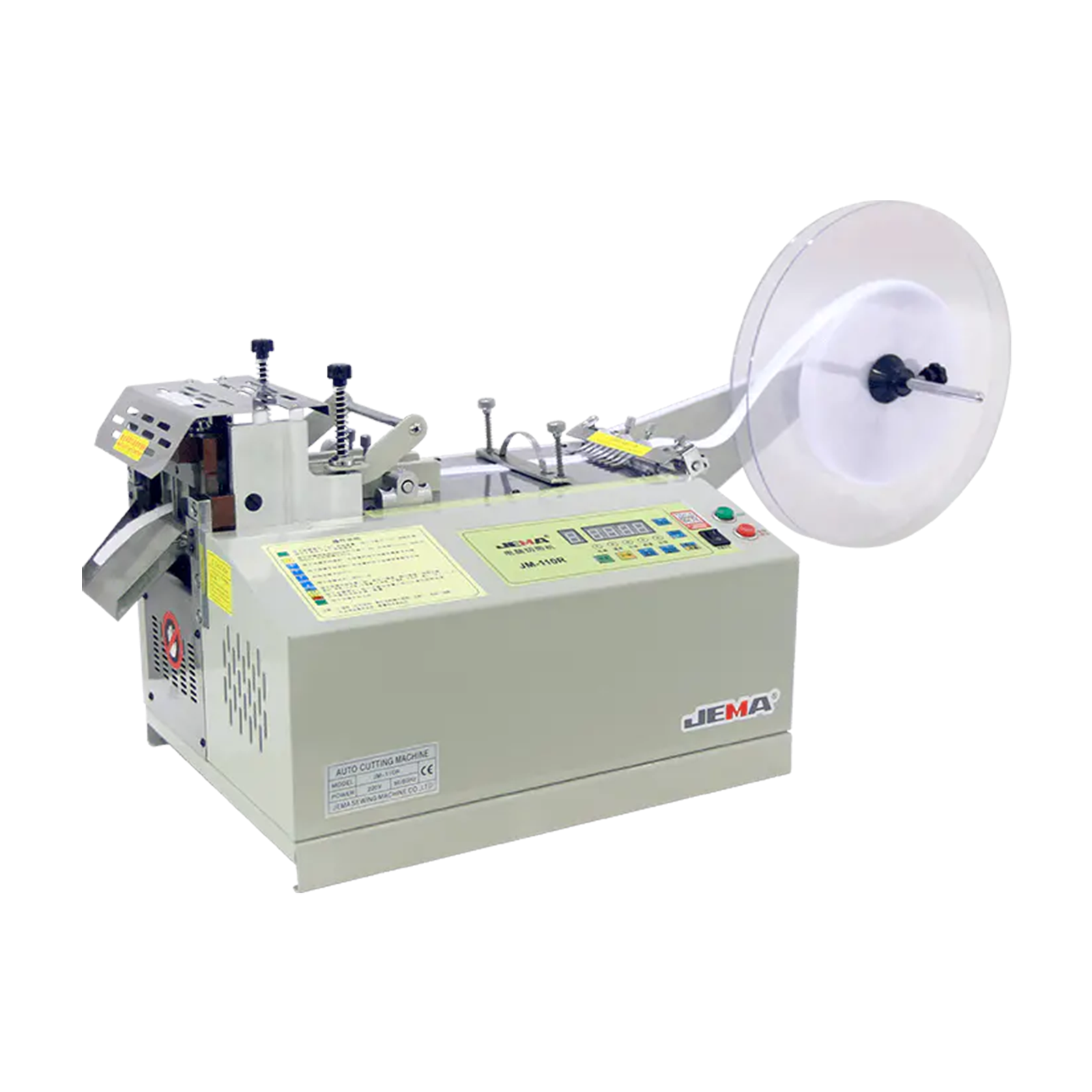

Jema JM-110R Computerized Tape Cutting Machine with Rounded Corners

Description

Jema JM-110R Computerized Tape Cutting Machine with Rounded Corners

High-precision automated cutting machine engineered specifically for angle, radius, and straight cutting of narrow fabrics, hook-and-loop fasteners, and technical webbing. The Jema JM-110R utilizes an accurate stepper motor feed system paired with shaped die-cutting blades to slice strips and round corner edges in a single automated stroke. By integrating custom edge profiling directly into the cutting cycle, it eliminates secondary manual trimming, prevents sharp corner poke-through, and guarantees identical radius edges across mass-production runs.

Operated via an intuitive digital microcomputer display, the machine enables fast programming of cut lengths, batch totals, cutting speeds, and corner radius parameters. Equipped with an automatic run-out detection sensor, anti-static discharge bars, and a heavy-duty rotary or shear-type blade assembly, the JM-110R provides smooth, hands-free feeding for sensitive ribbons, elastic bands, and coated straps without snagging or material distortion.

Key Features

• Computerized automatic tape and strip cutting machine with round corner capabilities

• Specialized die-cut blade system designed to cut neat, symmetrical round or beveled ends

• Microcomputer digital control panel for setting precise lengths, batch quantities, and speeds

• High-precision stepper motor drive ensuring consistent cut-length accuracy across continuous runs

• Eliminates manual hand-trimming of fastener ends to lower labor costs and scrap rates

• Automatic material run-out sensor that halts operation when rolls are exhausted

• Anti-static bar mechanism to prevent lightweight synthetic tapes from clinging to the blade

• Compact desktop structure with a robust cast base to absorb mechanical vibration

Specifications

• Brand: Jema

• Model: JM-110R

• Machine Type: Computerized Tape Cutting Machine (Round Corner Type)

• Blade Mechanism: Cold Die Shear / Radius Punch Blade

• Cut Profile: Rounded Corners (Radius Cut) & Straight Cut

• Maximum Cutting Width: Up to 50–70 mm (depending on radius die configuration)

• Cutting Length Range: 1 mm – 99,999 mm

• Cutting Speed: Up to 90–120 cuts/min (based on 50 mm length)

• Feed Control: Precision Stepper Motor

• Display: Digital Microcomputer LCD Interface

• Power Supply: 110V / 220V, Single-Phase, 50/60 Hz

Suitable For: Hook-and-Loop (Velcro) Straps • Medical Braces & Support Bands • Watch Bands • Backpack & Luggage Straps • Pet Collars & Leashes • Elastic Bands • Garment Labels & Badges • Children’s Wear Fasteners • Tactical Gear Webbing
