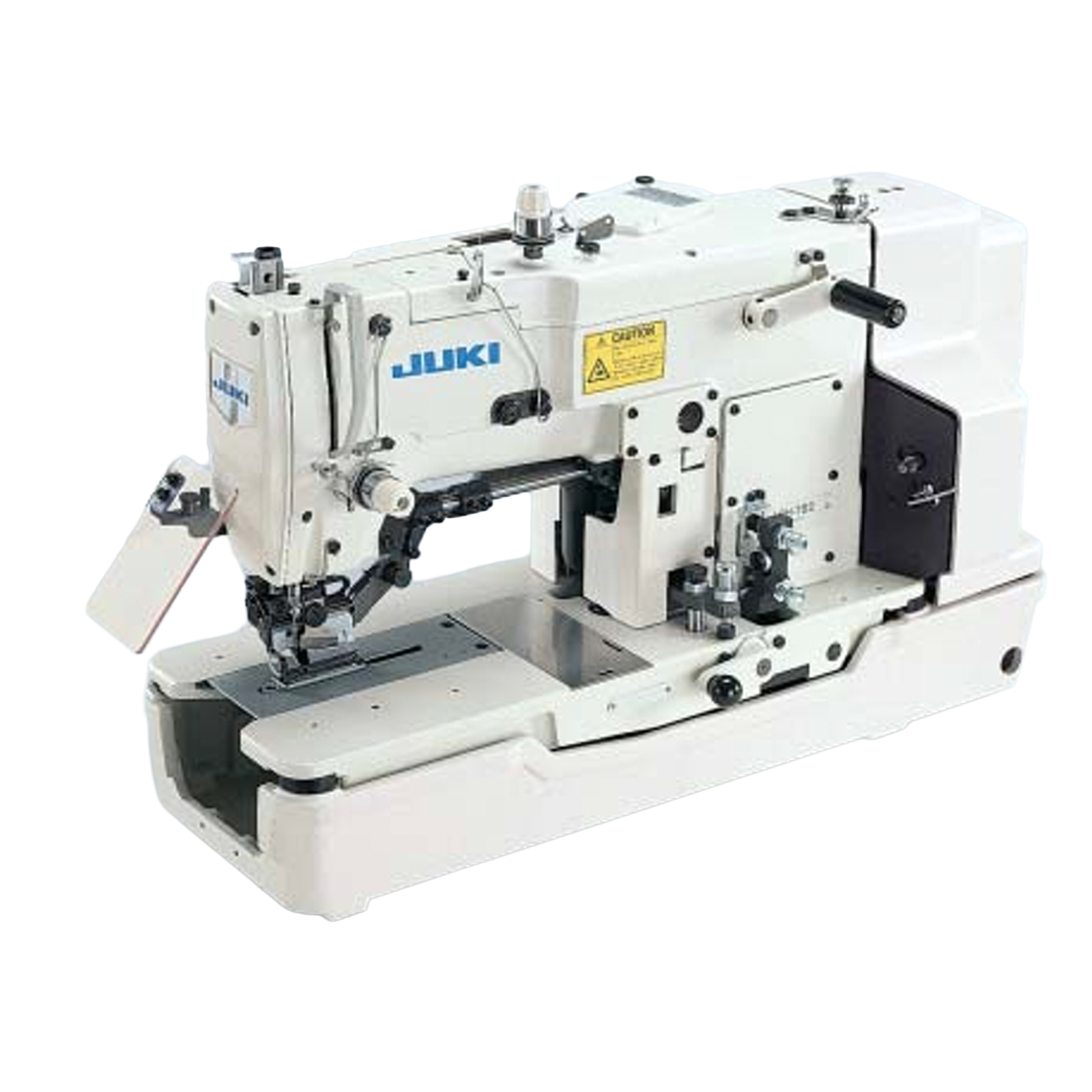

JUKI LBH-781 High-Speed Buttonhole Sewing Machine

Description

JUKI LBH-781 High-Speed Buttonhole Sewing Machine

High-speed industrial buttonhole sewing machine designed for producing clean, consistent and durable straight buttonholes on a wide range of garments. The JUKI LBH-781 is a single-needle lockstitch buttonholing machine widely used in garment factories for shirts, blouses, uniforms and general apparel production.

The machine is designed for reliable high-speed operation and produces high-quality buttonholes on ordinary woven fabrics as well as selected knitted materials. Its mechanical gear-change system allows adjustment of the number of stitches, while the automatic-lubricating full-rotary hook ensures smooth and dependable operation.

With a maximum buttonhole length of 22mm, the LBH-781 is particularly suitable for standard shirt and garment buttonhole applications. The work clamp can lift up to 12mm, allowing easier handling of thicker materials and multiple fabric layers. JUKI specifies a maximum sewing speed of 3,600 stitches per minute for the LBH-780 Series.

Key Features

• High-speed industrial buttonhole sewing machine
• Single-needle lockstitch buttonholing system
• Designed for straight buttonholes
• Maximum sewing speed up to 3,600 stitches/min
• Suitable for ordinary woven fabrics and selected knit materials
• Mechanical gear-change system for stitch count adjustment
• Produces clean and consistent buttonholes
• Automatic-lubricating full-rotary hook
• Work clamp lift up to 12mm
• Smooth and reliable operation
• Low-noise mechanical design
• Durable construction for continuous garment production
• Suitable for standard shirt and apparel buttonhole applications

Specifications

• Brand: JUKI
• Model: LBH-781
• Machine Type: High-Speed Industrial Buttonhole Sewing Machine
• Stitch Type: Lockstitch Buttonhole
• Number of Needles: 1
• Number of Threads: 2
• Maximum Sewing Speed: 3,600 stitches/min
• Maximum Buttonhole Length: 22mm
• Buttonhole Length Range: Approximately 6.4–19mm
• Bartack Width: 2.5–4mm
• Knife Size: 6.4–19mm
• Number of Stitches: Adjustable by gear-change system
• Presser / Work Clamp Lift: 12mm
• Maximum Material Thickness: Approximately 4mm
• Needle System: DP×5
• Recommended Needle Size: #11–#14
• Hook: DP-Type Automatic-Lubricating Full-Rotary Hook
• Lubrication: Automatic
• Motor: Standard Industrial Motor
• Machine Head Weight: Approximately 40kg

The LBH-781 specifications are based on JUKI LBH-780 Series documentation and LBH-781 technical manuals.

Suitable For: Dress Shirts • Casual Shirts • Blouses • Uniforms • Workwear • School Uniforms • Ladies Wear • Children’s Clothing • Woven Fabrics • Selected Knit Fabrics • Garment Manufacturing • Industrial Buttonhole Production
