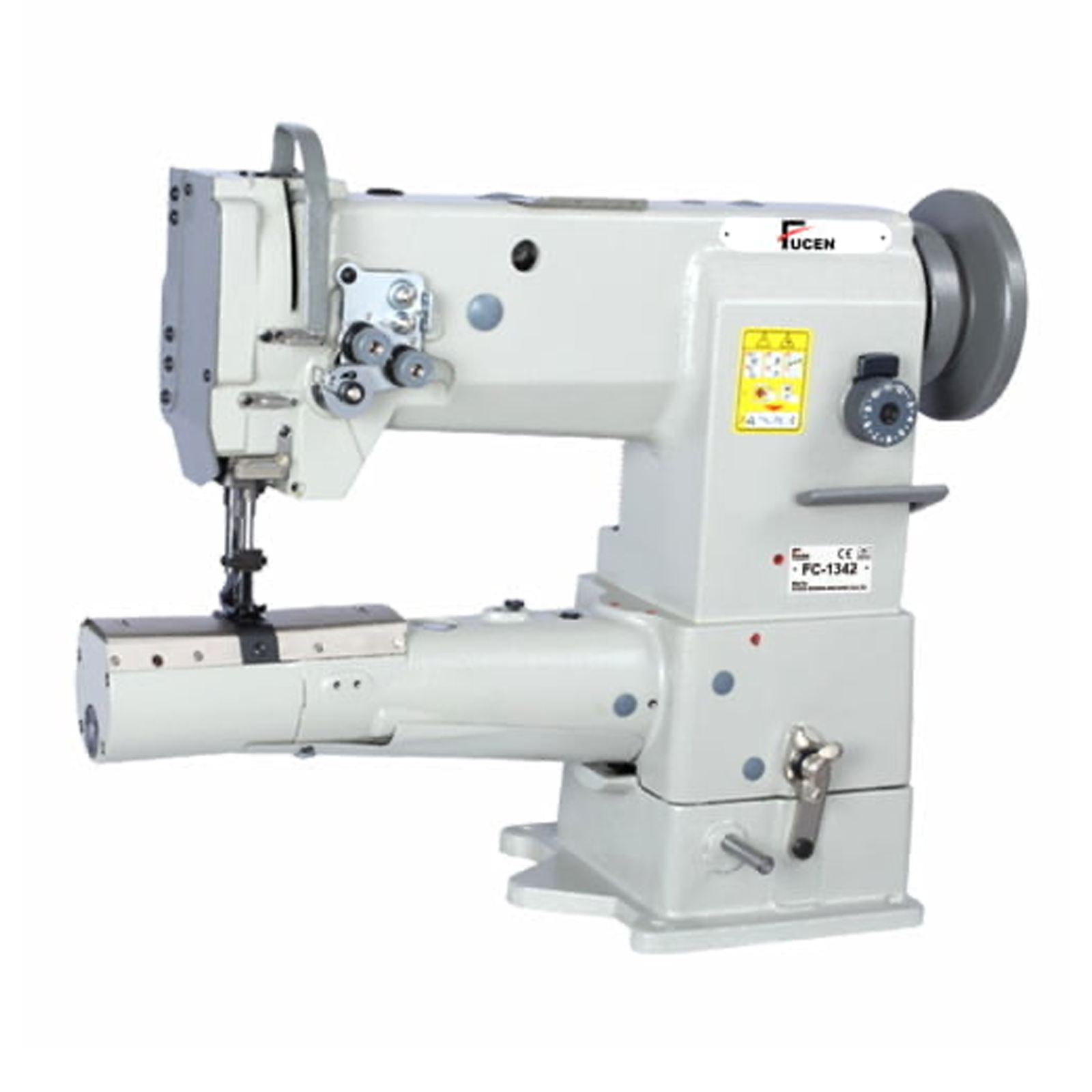

Fucen FC-1342 Heavy-Duty Twin-Needle Cylinder-Bed Compound Feed Lockstitch Sewing Machine

Description

Fucen FC-1342 Heavy-Duty Twin-Needle Cylinder-Bed Compound Feed Lockstitch Sewing Machine

High-performance heavy-duty twin-needle cylinder-bed walking foot lockstitch machine engineered for parallel seam assembly, decorative double topstitching, and structural joining on tubular, curved, and three-dimensional goods. The Fucen FC-1342 utilizes a synchronized unison compound feed mechanism (bottom feed, needle feed, and alternating walking presser feet) to advance dense genuine leathers, heavy canvas, and multi-ply coated textiles smoothly without ply slippage, bunching, or uneven seam spacing. Its slim cylindrical arm profile offers complete 360-degree maneuverability around sharp corners, tubular luggage shells, bag bottoms, and curved footwear contours.

Equipped with dual vertical-axis large-capacity rotary hooks, the machine maximizes thread capacity for both needle lines, significantly reducing bobbin-change downtime when running thick synthetic bonded threads. An elevated needle-bar stroke paired with high presser foot clearance provides smooth traversal over bulky cross-seams and reinforced corner joints. Featuring adjustable alternating presser foot lift and an ergonomic manual reverse lever for instant backtacking, the FC-1342 delivers parallel, uniform double-needle seams across demanding leathercraft, bag manufacturing, and automotive trim lines.

Key Features

• Industrial twin-needle cylinder-bed walking foot lockstitch machine

• Unison compound feed system (needle feed, drop feed, alternating walking feet) for synchronized, non-slip material transport

• Two-needle mechanism producing uniform, parallel seams and decorative double topstitching

• Slim cylinder bed profile engineered for unobstructed feeding of 3D, cylindrical, and curved workpieces

• Dual vertical-axis large-capacity rotary hooks accommodating heavy threads and large bobbins

• Generous presser foot lift clearance for effortless loading and handling of dense, multi-layer workpieces

• Dial-regulated alternating presser foot movement to maintain consistent stitch tension over uneven steps

• Accessible manual reverse lever for instant seam locking and reinforcement backtacking

• Heavy-duty cast-iron chassis engineered to minimize vibration and maintain needle gauge alignment during high-speed runs

Specifications

• Brand: Fucen

• Model: FC-1342

• Class: Heavy Duty / Cylinder-Bed Series

• Machine Type: Twin-Needle Cylinder-Bed Compound Feed Lockstitch Machine

• Stitch Type: 301 Lockstitch

• Number of Needles: 2

• Needle Gauge (Distance): Standard 1/4″ (6.4 mm) (other gauges optional)

• Feed System: Unison Compound Feed (Walking Foot + Needle Feed + Drop Feed)

• Bed Type: Cylinder Bed (approx. 72 mm diameter)

• Maximum Stitch Length: Up to 6–9 mm

• Presser Foot Lift: Up to 9 mm (by hand) / 16 mm (by knee lifter)

• Needle Bar Stroke: 36 mm

• Needle System: DPx17 (135×17)

• Needle Size: #18–#23 (Nm 110–160)

• Hook Type: Dual Vertical-Axis Large Capacity Rotary Hooks

• Maximum Sewing Speed: Up to 2,000–2,500 stitches/min

Suitable For: Twin-Needle Leather Topstitching • Handbags, Totes & Purses • Luggage & Travel Bags • Heavy Backpacks • Automotive Interior Trims • Footwear & Boot Assembly • Sports Bags & Golf Bags • Motorcycle Bags & Saddles • Belts & Heavy Strapping • Tactical & Outdoor Gear
