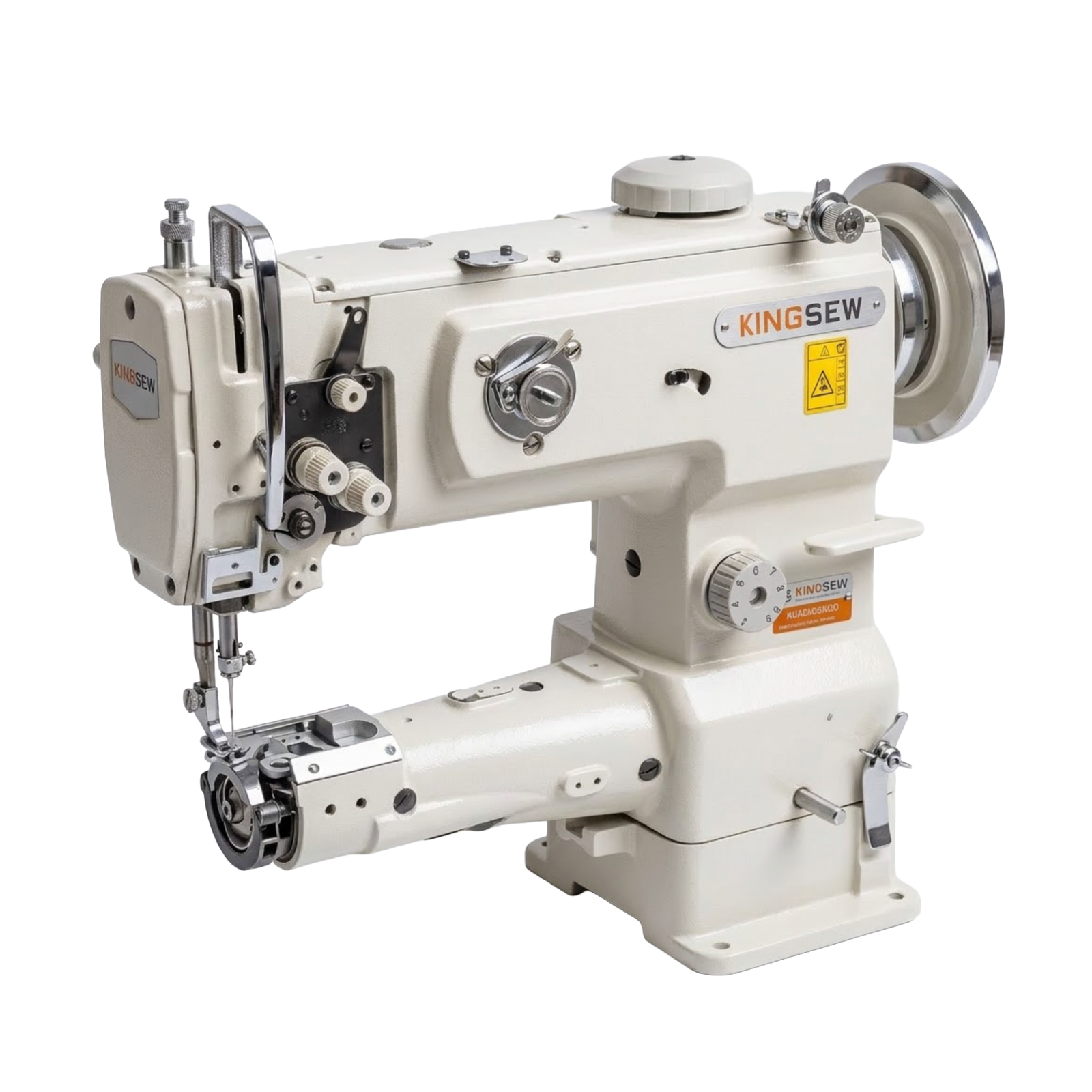

Kingsew 3341 Cylinder Bed Walking Foot Sewing Machine

Description

Kingsew 3341 Cylinder Bed Walking Foot Sewing Machine

Heavy-duty single-needle cylinder bed lockstitch machine designed for sewing thick materials, tubular products and three-dimensional components. The Kingsew 3341 Cylinder Bed is engineered with a compound-feed mechanism combining bottom feed, needle feed and alternating walking-foot top feed to provide powerful, uniform material movement.

The walking-foot feeding system helps prevent slipping and uneven feeding when working with multiple layers of leather, synthetic leather, canvas, vinyl and other heavy materials. Its cylinder-bed construction allows operators to easily sew curved, tubular and shaped workpieces that are difficult to handle on conventional flat-bed sewing machines.

The Kingsew 3341 is designed for demanding industrial applications requiring strong seams, long stitch capability and reliable feeding performance. Its large hook and heavy-duty construction make it suitable for manufacturing bags, luggage, upholstery, leather products and various technical textile components.

Key Features

• Single-needle cylinder bed lockstitch machine
• Heavy-duty compound-feed walking-foot mechanism
• Bottom feed, needle feed and alternating top feed
• Excellent feeding performance on thick and multi-layer materials
• Cylinder bed design for tubular and three-dimensional workpieces
• Large-capacity vertical-axis rotary hook
• Long stitch length for heavy-duty sewing applications
• High presser-foot lift for thick materials
• Reverse stitching for seam reinforcement
• Adjustable alternating presser-foot movement
• Suitable for leather, canvas, vinyl and synthetic materials
• Strong and durable industrial machine construction

Specifications

• Brand: Kingsew
• Class: 3341
• Machine Type: Heavy-Duty Cylinder Bed Walking Foot Sewing Machine
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Number of Threads: 2
• Feed System: Bottom Feed + Needle Feed + Alternating Walking Foot
• Maximum Stitch Length: Up to 9mm
• Maximum Sewing Speed: Up to 2,000 stitches/min
• Presser Foot Lift: Up to 16mm
• Alternating Foot Stroke: Adjustable
• Cylinder Bed Diameter: Approximately 72mm
• Needle System: DP × 17 / 135 × 17
• Hook: Large Vertical-Axis Rotary Hook
• Reverse Feed: Manual Reverse Stitching
• Applications: Medium- to Heavy-Duty Materials and Tubular Components

Suitable For: Leather Goods • Handbags • Luggage • Backpacks • Footwear • Upholstery • Automotive Interiors • Car Seat Covers • Canvas Products • Synthetic Leather Products • Industrial Bags • Filters • Tubular and Curved Components
