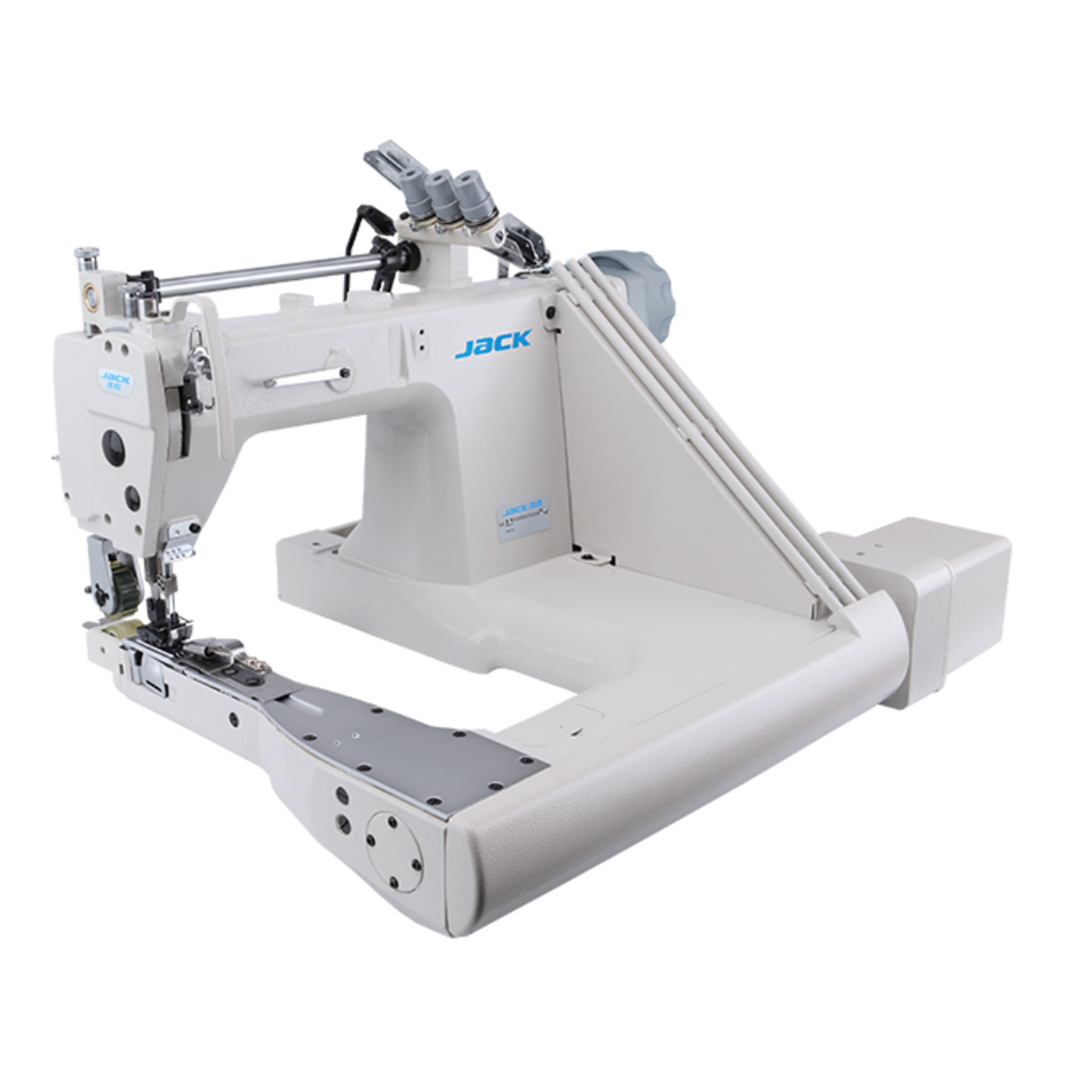

JACK JK-T9270D Feed-Off-The-Arm Double Chainstitch Sewing Machine

Description

JACK JK-T9270D Feed-Off-The-Arm Double Chainstitch Sewing Machine

Industrial multi-needle feed-off-the-arm chainstitch machine designed for sewing garments and tubular components such as shirts, uniforms, jeans and raincoats.

The JACK JK-T9270D features a cylindrical feed-off-the-arm design that allows the operator to sew tubular and hard-to-reach areas while maintaining smooth and consistent material feeding. Depending on the subclass, the machine is available with 2 or 3 needles and 4 or 6 threads, making it suitable for different seam constructions and fabric requirements.

The machine incorporates an oil-lubricated rear puller to improve fabric feeding and reduce material slippage. The PL puller is integrated and motor-driven, while the optional PS puller is externally mounted. A removable needle guard helps prevent skipped stitches, while the push-button stitch-length adjustment allows quick changes for different sewing requirements.

Key Features

• Multi-needle feed-off-the-arm chainstitch machine
• 2-needle / 3-needle configurations depending on subclass
• 4-thread / 6-thread configurations
• Cylindrical arm for tubular garment sewing
• Oil-lubricated rear puller for smooth material feeding
• PL integrated motorized puller available
• PS external puller available
• Removable needle guard to help prevent skipped stitches
• Push-button stitch-length adjustment
• Automatic needle positioning function
• Built-in LED sewing light
• 750W energy-saving direct-drive motor
• Suitable for light to medium-weight garment production
• Maximum sewing speed up to 3,500 stitches/min

Specifications

Feed-Off-The-Arm

• Brand: JACK
• Class: JK-T9270D
• Machine Type: Feed-Off-The-Arm Chainstitch Machine
• Stitch Type: Double Chainstitch
• Number of Needles: 2 or 3
• Number of Threads: 4 or 6
• Needle System: TV×64
• Needle Size: #12 / #14 depending on subclass
• Needle Gauge: 1/8″ • 3/16″ • 1/4″ depending on subclass
• Maximum Stitch Length: 3.5mm
• Presser Foot Lift: Up to 8mm
• Maximum Sewing Speed: Up to 3,500 stitches/min
• Motor: 750W Direct-Drive Power-Saving Motor
• Puller: PL Integrated / PS External, depending on configuration
• Arm Type: Cylindrical Feed-Off-The-Arm
• Lubrication: Oil-Lubricated Rear Puller
• Machine Dimensions: Approximately 580 × 535 × 475mm
• Machine Weight: Approximately 56/60kg

Suitable For:

Shirts • Jeans • Uniforms • Raincoats • Sportswear • Workwear • Trousers • Tubular Garment Components • Side Seams • Sleeves • Inseams • Light to Medium-Weight Fabrics
