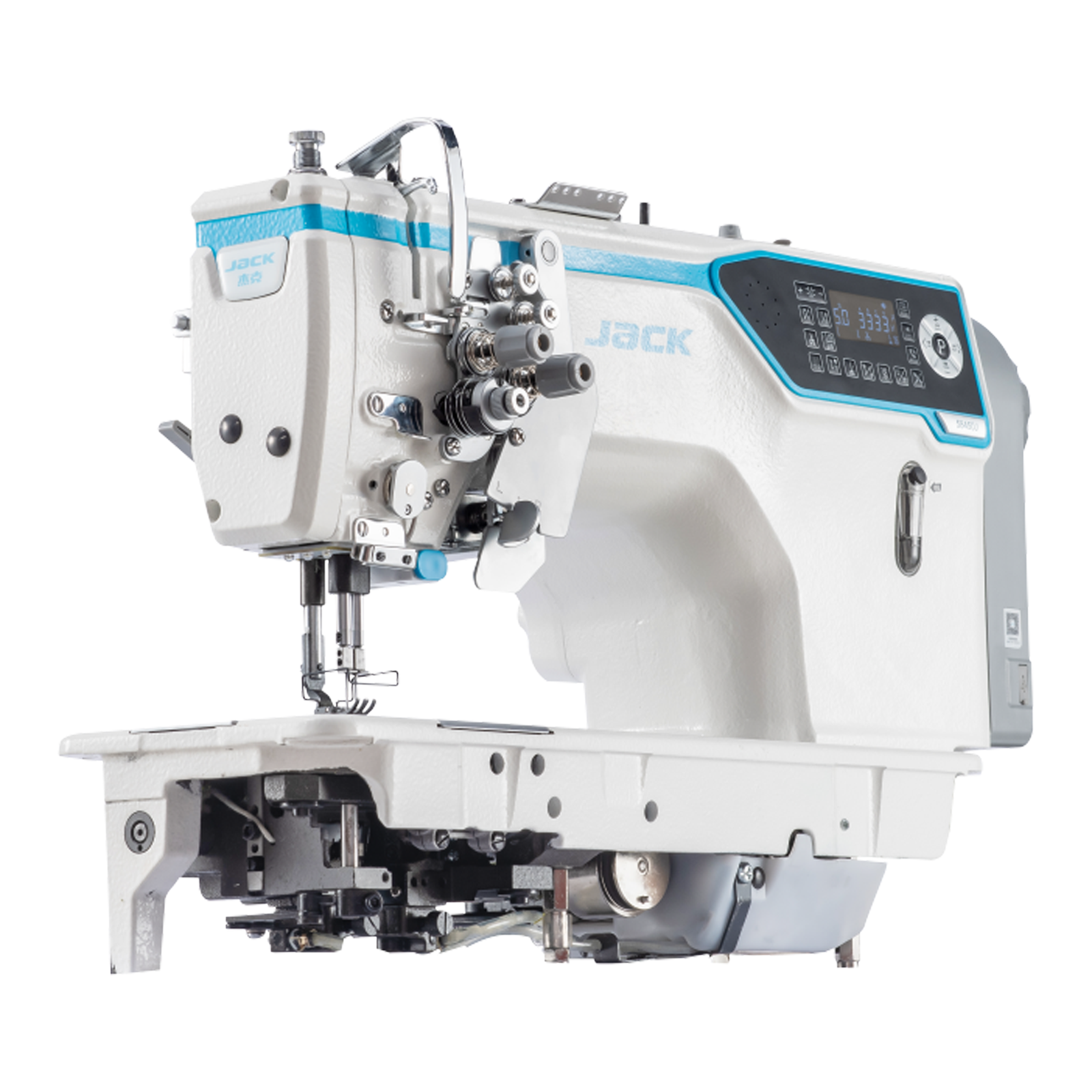

JACK JK-5845 Double Needle Lockstitch Sewing Machine

Description

JACK JK-5845 Double Needle Lockstitch Sewing Machine

High-speed industrial double-needle lockstitch sewing machine designed for producing parallel seams, decorative stitching and reinforced seams on a wide range of garments and textile products. The JACK JK-5845 Series features two needles and two hooks, allowing efficient simultaneous sewing of two parallel rows of stitches.

The machine is available in different configurations, including standard and computerized versions with automatic functions. Selected models feature a split needle bar with disengageable needles, allowing the operator to temporarily use one needle when sewing corners or shaped sections. Advanced computerized versions can also include automatic thread trimming, backtacking, presser-foot lifting and auto-corner sewing.

The JACK 5845 Series provides a large working space, stable single-shaft drive system and high-speed performance, making it suitable for garment factories producing trousers, jeans, uniforms and other apparel requiring double-row stitching.

Key Features

• High-speed industrial double-needle lockstitch machine
• Two-needle parallel stitching system
• Suitable for decorative and reinforced seams
• Available with fixed or disengageable needle bars, depending on model
• Split needle bar allows easier sewing around corners and shaped sections
• Automatic thread trimming on computerized versions
• Automatic reverse/backtacking on computerized versions
• Integrated automatic presser-foot lifting
• Auto-corner sewing function available on selected models
• Electronic thread tension available on selected versions
• Large sewing workspace for easier material handling
• Digital stitch length adjustment on computerized versions
• Straight-knife thread trimming system suitable for different thread thicknesses
• Integrated LED work light
• Voice guidance and one-key reset on selected computerized models
• Stable single-shaft motor design for reduced vibration and noise
• Suitable for continuous industrial garment production

Specifications

• Brand: JACK
• Class: JK-5845 Series
• Machine Type: Industrial Double Needle Lockstitch Sewing Machine
• Stitch Type: 301 Double Needle Lockstitch
• Number of Needles: 2
• Number of Threads: 4
• Feed System: Bottom Feed
• Standard Needle Gauge: 6.4mm
• Optional Needle Gauges: Various, depending on subclass
• Maximum Stitch Length: Up to 5mm
• Maximum Sewing Speed: 3,000 stitches/min
• Presser Foot Lift: 7–13mm
• Needle System: DP×5
• Needle Size: Nm 75–110 / approximately #11–#16, depending on material
• Hook: Small Hook standard; larger hook versions available in related subclasses
• Motor: Direct Drive / Computerized Direct Drive, depending on model
• Working Space: Approximately 264 × 120mm on computerized versions
• Automatic Functions: Thread Trimming • Backtacking • Presser Foot Lifting • Thread Wiping, depending on model

Suitable For: Trousers • Jeans • Denim Garments • Uniforms • Workwear • Shirts • Jackets • Sportswear • Casual Wear • Decorative Stitching • Parallel Topstitching • Reinforced Seams • Garment Manufacturing • Industrial Textile Production

Note: The JACK JK-5845 Series includes several subclasses and configurations, such as standard, direct-drive and computerized versions. Exact specifications and automatic functions may vary depending on the selected model.
