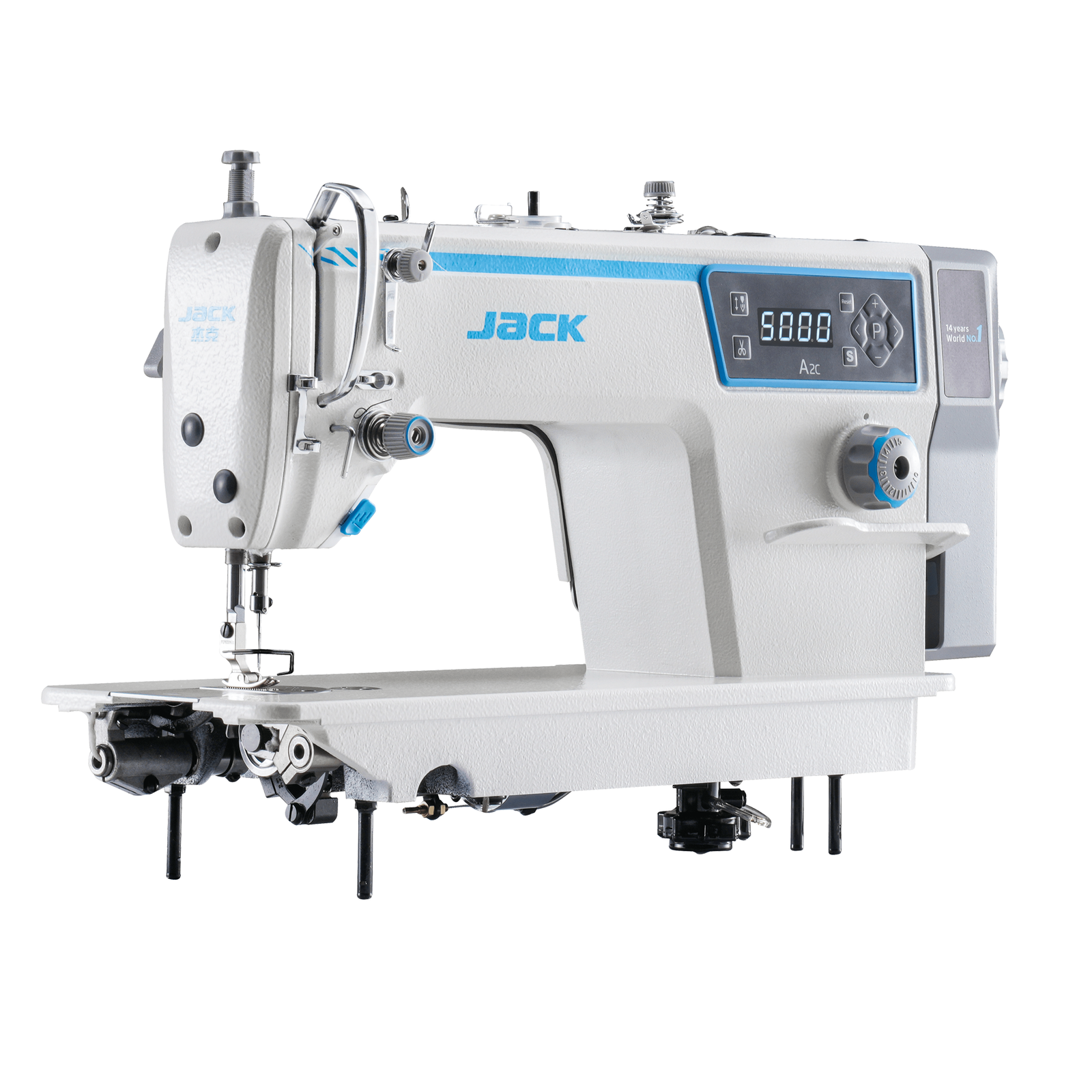

JACK A2C High-Speed Direct Drive Lockstitch Sewing Machine

Description

JACK A2C High-Speed Direct Drive Lockstitch Sewing Machine

High-speed single-needle industrial lockstitch sewing machine designed for efficient garment production across light, medium and selected heavy-weight materials. The JACK A2C combines a powerful integrated direct-drive motor, automatic thread trimming and intelligent electronic controls to deliver fast, smooth and consistent sewing performance.

The machine features JACK’s FST (Full Speed over Cross Seam Technology), which helps maintain sewing speed and stability when stitching across thick seams, overlapping layers and changes in material thickness. Its high-torque motor provides strong needle penetration, making the machine suitable for demanding garment production applications.

The JACK A2C is equipped with an automatic thread trimmer, needle positioning system, integrated LED light and computerized control panel. These features help reduce operator workload, improve productivity and provide greater sewing precision. With a maximum sewing speed of up to 5,000 stitches per minute, the A2C is suitable for modern tailoring workshops and industrial garment manufacturing.

Key Features

• Single-needle high-speed industrial lockstitch machine

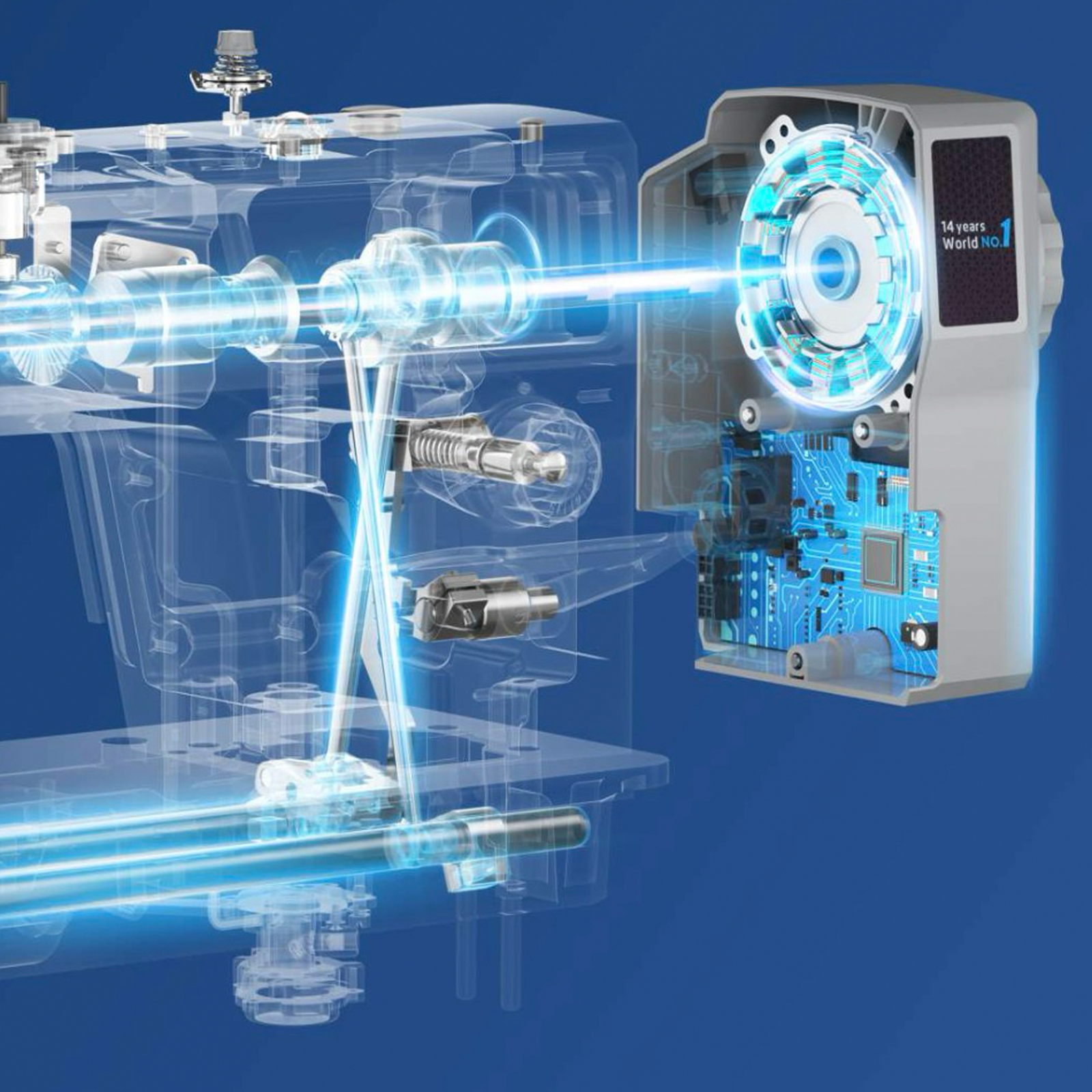

• Integrated energy-saving direct-drive servo motor
• Automatic thread trimming system
• FST technology for smooth sewing across cross seams and thick layers
• Powerful 5.5 Nm high-torque motor
• Strong needle penetration for multiple fabric layers
• Automatic needle positioning
• Computerized integrated control panel
• Stitch-to-stitch function for precise sewing
• Adjustable maximum sewing speed up to 5,000 stitches/min
• Integrated LED work light with adjustable brightness
• Built-in bobbin winder
• Bottom feed mechanism for consistent material movement
• Wide voltage adaptability for stable operation
• Low-noise and low-vibration design
• Suitable for continuous industrial garment production

Specifications

• Brand: JACK
• Model: A2C / A2C-C
• Machine Type: High-Speed Single Needle Lockstitch Machine
• Stitch Type: 301 Lockstitch
• Number of Needles: 1
• Number of Threads: 2
• Feed System: Bottom Feed / Drop Feed
• Maximum Stitch Length: 5mm
• Maximum Sewing Speed: 5,000 stitches/min
• Presser Foot Lift: Up to 13mm
• Needle System: DB×1
• Recommended Needle Size: #11–#18
• Motor: Integrated Direct Drive Servo Motor
• Motor Torque: 5.5 Nm
• Automatic Functions: Thread Trimming and Needle Positioning
• Lighting: Integrated LED Light
• Machine Dimensions: 645 × 248 × 550mm
• Net Weight: Approximately 30kg

Suitable For: Shirts • T-Shirts • Blouses • Trousers • Jeans • Uniforms • Workwear • Children’s Wear • Sportswear • Knitwear • Woven Fabrics • Light Fabrics • Medium-Weight Fabrics • Garment Manufacturing • Tailoring • Industrial Production
